- Machine-tools
- Machining Center
- 3-axis machining center
- Multiax International CNC srl

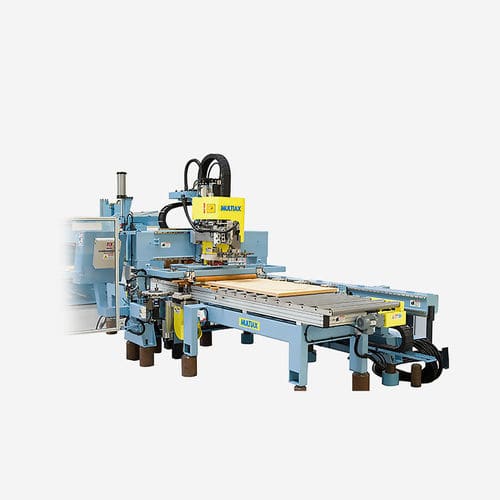

Profile CNC machining center D 3-axisverticalengraving
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Associated functions
- engraving
- Applications
- for profiles, for panels, for furniture, door
- Other characteristics
- high-productivity, CE, with automated loading, for production, all-in-one
- X travel
3,100 mm
(122.05 in)- Y travel
1,200 mm
(47.24 in)- Z travel
300 mm
(11.81 in)- Rotational speed
Max.: 24,000 rpm
(150,796 rad.min-1)Min.: 18,000 rpm
(113,097 rad.min-1)- Power
Max.: 15 kW
(20.39 hp)Min.: 10 kW
(13.6 hp)- Work feed X-axis
60,000 mm/min
(39.37 in/s)- Work feed Y-axis
60,000 mm/min
(39.37 in/s)- Work feed Z-axis
20,000 mm/min
(13.12 in/s)
Description
Fit to online profiling and decoration of doors for residential use. Particularly, the raw panels can be operated on both sides simultaneously (when going to reproduce the same decoration) or a surface at a time, without having to overturn the panel, when each face has a different profile.
