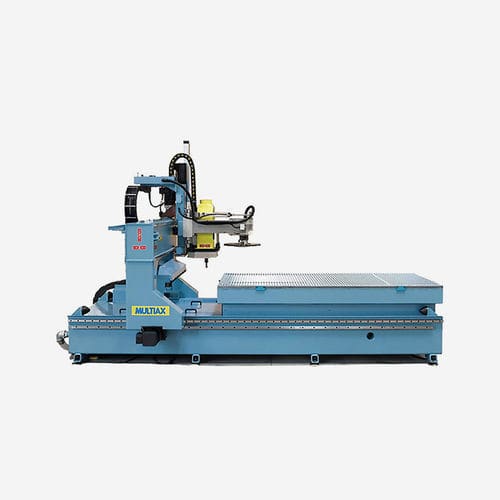

Mobile gantry CNC machining center N 3-axis5-axis4-axis
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 5-axis, 4-axis, 6-axis
- Spindle orientation
- vertical
- Machined material
- for non-ferrous metals, for brass, for composites, for wood, for plastics, for aluminum
- Structure
- mobile gantry, with moving table, with fixed table
- Number of spindles
- 2-spindle, 3-spindle, four-spindle
- Spindle mount
- HSK A-63, HSK F63
- Number of tool stations
- 32 tools, 16 tools, 8 tools
- Associated functions
- chamfering, cutting, drilling
- Applications
- for the automobile industry, for the aeronautical industry, door, foam, for furniture, for aeronautics, for windows and doors, for the wood industry, for panels, for profiles, for aluminum profiles, for the plastics industry, for the aluminum industry
- Other characteristics
- modular, high-speed, compact, high-productivity, for high-precision cutting, variable-speed, rigid, CE, two-station, multi-spindle, ultrasonic, tilting-head, with control panel
- X travel
Max.: 3,800 mm
(149.61 in)Min.: 1,800 mm
(70.87 in)- Y travel
Max.: 16,000 mm
(629.92 in)Min.: 1,800 mm
(70.87 in)- Z travel
Max.: 1,200 mm
(47.24 in)Min.: 250 mm
(9.84 in)- Rotational speed
Max.: 24,000 rpm
(150,796 rad.min-1)Min.: 18,000 rpm
(113,097 rad.min-1)- Power
Max.: 15 kW
(20.39 hp)Min.: 10 kW
(13.6 hp)- Work feed X-axis
60,000 mm/min
(39.37 in/s)- Work feed Y-axis
60,000 mm/min
(39.37 in/s)- Work feed Z-axis
40 mm/min
(0.03 in/s)- Positioning accuracy
Max.: 50 µm
Min.: 25 µm
- Repeatability
Max.: 23 µm
Min.: 12 µm
- Tool-changing time
Max.: 16 s
Min.: 8 s
- Weight
Max.: 22,000 kg
(48,501.7 lb)Min.: 4,500 kg
(9,920.8 lb)
Description
This machine type specially features a moving bridge with twin servo drives at both ends and is structured in different versions with different designs and weights for several applications: from nesting of aluminum stacked sheets to machining of long components. The structure of the N SERIES is also used to configure highly customized multiple head, often feed-through machines to meet high volume series productions.
