5-axis CNC machining center P series
with swiveling spindlemobile gantryfor aluminum

5-axis CNC machining center
5-axis CNC machining center
5-axis CNC machining center
Add to favorites
Compare this product


Characteristics

Number of axes
5-axis
Spindle orientation
with swiveling spindle
Structure
mobile gantry
Machined material
for aluminum, for copper, for non-ferrous metals, for brass, for composites, for wood, for plastics, for ceramics
Spindle mount
HSK A-63, HSK F63, HSK-E40, HSK-E32
Number of tool stations
24 tools, 32 outils, 16 tools, 8 tools
Applications
drilling, cutting, for the automobile industry, for the aeronautical industry, for vehicles, for aeronautics, medical, for drilling, for the plastics industry, for furniture, for the wood industry, for graphite machining
Other characteristics
compact, CE, with pallet changer, ultrasonic, single-head, tilting-head, chamfering, conveyor belt, contour
X travel

1,800 mm, 2,600 mm, 3,100 mm
(71 in, 102 in, 122 in)

Y travel

1,500 mm, 3,000 mm
(59 in, 118 in)

Z travel

900 mm, 1,200 mm
(35 in, 47 in)

Rotational speed

Max.: 24,000 rpm
(150,796 rad.min-1)

Min.: 18,000 rpm
(113,097 rad.min-1)

Power

Max.: 15 kW
(20.39 hp)

Min.: 10 kW
(13.6 hp)

Workpiece max height

Max.: 1,200 mm
(47 in)

Min.: 1 mm
(0 in)

Table rotation (C axis)

Max.: 500 °

Min.: 1 °

Work feed X-axis

Max.: 84,000 mm/min
(55 in/s)

Min.: 0 mm/min
(0 in/s)

Work feed Y-axis

Max.: 84,000 mm/min
(55 in/s)

Min.: 0 mm/min
(0 in/s)

Work feed Z-axis

Max.: 40,000 mm/min
(26 in/s)

Min.: 0 mm/min
(0 in/s)

Table load capacity

Max.: 50,000 kg
(110,231 lb)

Min.: 810 kg
(1,786 lb)

Tool weight (max)

Max.: 15 kg
(33.1 lb)

Min.: 0 kg
(0 lb)

Positioning accuracy

Max.: 45 µm

Min.: 25 µm

Repeatability

Max.: 23 µm

Min.: 12 µm

Tool-changing time

Max.: 16 s

Min.: 8 s

Weight

Max.: 10,000 kg
(22,046.23 lb)

Min.: 6,000 kg
(13,227.74 lb)

Overall length

Max.: 6,800 mm
(267.7 in)

Min.: 5,500 mm
(216.5 in)

Overall width

3,200 mm, 6,000 mm
(126 in, 236.2 in)

Overall height

3,600 mm, 4,200 mm
(141.7 in, 165.4 in)

Description

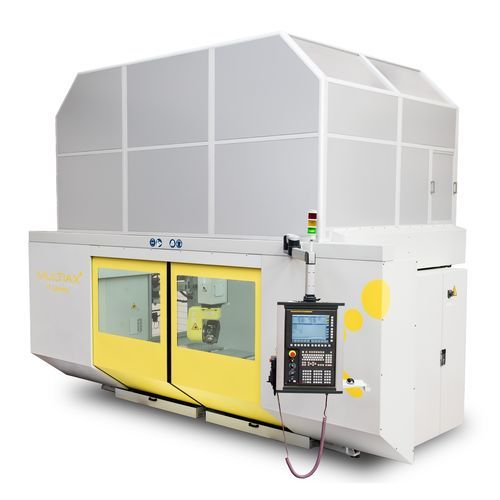

The smartest closed cell CNC 5-axis machining center for composites is compact, enclosed, with a moving bridge design, and engineered to perform highly accurate 3D operations. The bridge is moved with a twin master/slave drive configuration and there are many options available to make possible a wide range of configurations to meet very specific requirements.
