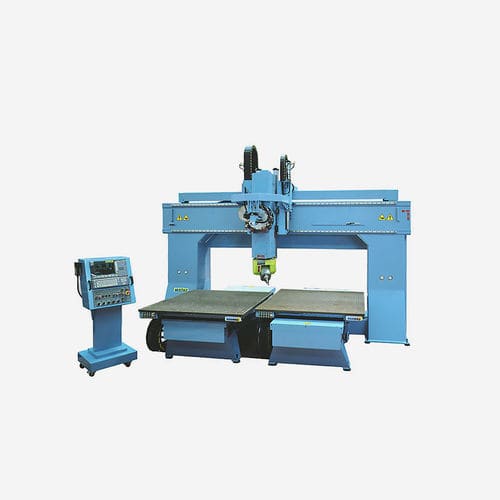

5-axis CNC machining center F serieswith swiveling spindlewith fixed portalwith moving table
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- with swiveling spindle
- Structure
- with fixed portal, with moving table
- Machined material
- for aluminum, for copper, for brass, for composites, for wood, for plastics
- Spindle mount
- HSK A-63, HSK F63
- Number of tool stations
- 24 tools, 16 tools, 12 tools, 8 tools
- Applications
- cutting, drilling, for the automobile industry, for the aeronautical industry, for aeronautics, for drilling, for profiles, for aluminum profiles, for the plastics industry, for the aluminum industry, for furniture, for the wood industry
- Other characteristics
- milling, modular, CE, with integrated pallet changer, with control panel, two-station
- X travel
Max.: 6,200 mm
(244 in)Min.: 3,400 mm
(134 in)- Y travel
Max.: 2,600 mm
(102 in)Min.: 1,600 mm
(63 in)- Z travel
Max.: 1,600 mm
(63 in)Min.: 600 mm
(24 in)- Rotational speed
Max.: 24,000 rpm
(150,796 rad.min-1)Min.: 18,000 rpm
(113,097 rad.min-1)- Power
Max.: 15 kW
(20.39 hp)Min.: 10 kW
(13.6 hp)- Work feed X-axis
60,000 mm/min
(39 in/s)- Work feed Y-axis
60,000 mm/min
(39 in/s)- Work feed Z-axis
30 mm/min
(0 in/s)- Tool-changing time
Max.: 16 s
Min.: 8 s
Description
The F SERIES, articulating 5 axes Machining Centres, are designed, and built with rigidity, agility, and flexibility in mind. F SERIES specially features an extra rigid construction with opposing slide ways on the Z axis and the reinforced cross beam to ensure straightness and squareness precision is maintained even with its extra-long Y-V-axes. These and many other features all add to this machine to cope with every demand and to get even the toughest job done without stress. Routing applications include Moulds Tools Trimming, Modelling, Carving, Pattern Making, and a host of other applications throughout several industries.
Catalogs
F Series
2 Pages
