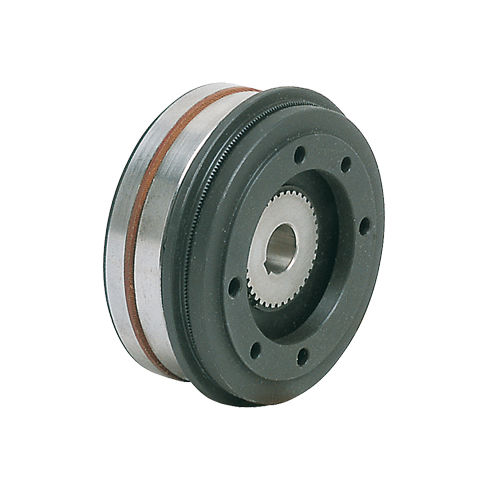

Toothed clutch EC-N/Z electromagneticspring
Add to favorites
Compare this product
Characteristics
- Type
- toothed
- Operation
- electromagnetic, spring
- Torque
Min.: 25 Nm
(18.439054 ft.lb)Max.: 1,050 Nm
(774.440257 ft.lb)- Rotational speed
Min.: 2,000 rpm
(12,566.3706 rad.min-1)Max.: 4,500 rpm
(28,274.3339 rad.min-1)- Power
Min.: 22 W
Max.: 135 W
Description
Spring-applied, tooth-type coupling with collector ring
Power supply voltage: 24V cc.- 0% + 15%.
Used for oil and dry applications.
Guarantees connection between a shaft splined to the toothed hub (4) and a flange or pulley fastened to the toothed housing (3).
The connected parts must be well-aligned and coaxial.
