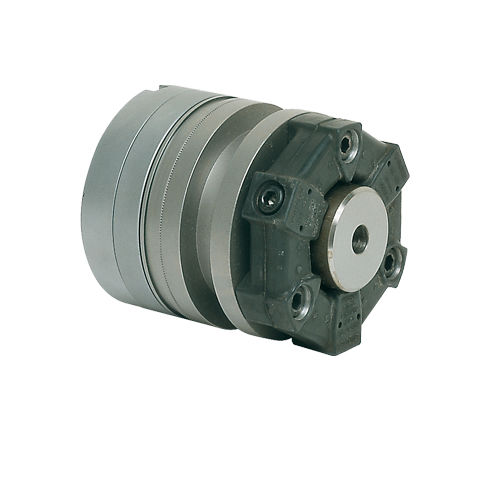

Toothed clutch ESBG-N/Z electromagneticspring
Add to favorites
Compare this product
Characteristics
- Type
- toothed
- Operation
- electromagnetic, spring
- Torque
Max.: 12,800 Nm
(9,440.7955 ft.lb)Min.: 50 Nm
(36.8781 ft.lb)- Rotational speed
Max.: 4,000 rpm
(25,132.74 rad.min-1)Min.: 1,000 rpm
(6,283.19 rad.min-1)- Power
Max.: 1,100 W
Min.: 36 W
Description
Spring-applied, tooth-type coupling with flexible coupling
Power supply voltage: 24V cc. – 0% + 15%.
Used only for dry applications.
Guarantees quick, simple assembly between two shafts that are not perfectly aligned.
The flexibility angles in radial, angular and axial direction are specified according to the size.
