Mechanical torque limiter GDF/GE
with sprocket wheel

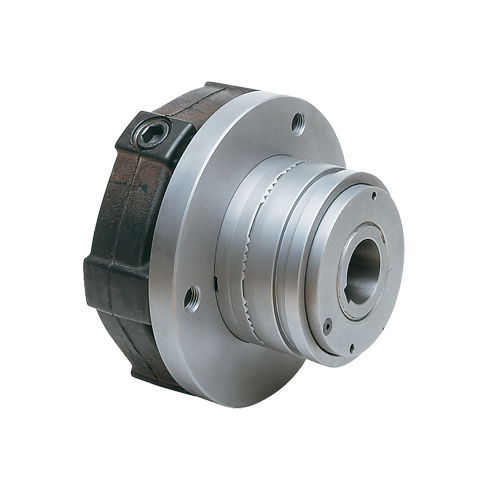

Mechanical torque limiter - GDF/GE - MWM FRENI-FRIZIONI - with sprocket wheel
Mechanical torque limiter - GDF/GE - MWM FRENI-FRIZIONI - with sprocket wheel
Mechanical torque limiter - GDF/GE - MWM FRENI-FRIZIONI - with sprocket wheel - image - 2
Mechanical torque limiter - GDF/GE - MWM FRENI-FRIZIONI - with sprocket wheel - image - 3
Add to favorites
Compare this product
Go to the MWM FRENI-FRIZIONI website for more information

Characteristics

Operation
mechanical, with sprocket wheel
Torque

Min.: 5 Nm
(3.687811 ft.lb)

Max.: 1,400 Nm
(1,032.587009 ft.lb)

Diameter

Min.: 10 mm
(0.39 in)

Max.: 85 mm
(3.35 in)

Rotational speed

Min.: 30 rpm
(188.4956 rad.min-1)

Max.: 300 rpm
(1,884.9556 rad.min-1)

Description

Tooth-type torque limiter with axial slippage and with flexible coupling For dry applications, for connecting two not perfectly aligned shafts. The flexibility angles in radial, angular and axial direction are specified according to the size. The calibration is adjusted by the ring nut (6), which varies the load of the springs (4) controlling the toothed housing (3). The toothed housing (3) has a groove for fitting the microswitch (10).
