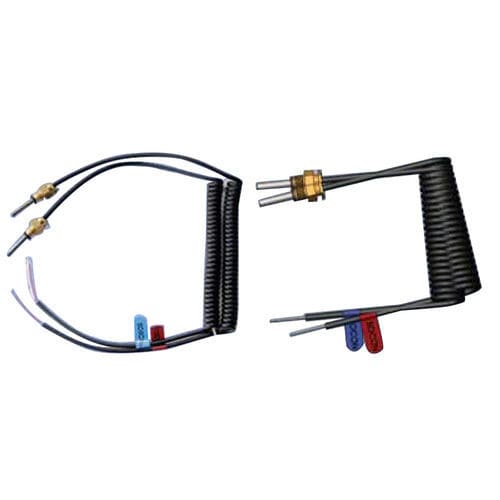

Pt100 temperature sensor TM1101-5-1500

Pt1000Pt500insulated

Traditional standard heat meter temperature sensor pairs Easy installation ，strong durability Mainly technical data： Follow Standard：EN1413 and CJ128-2007 Measuring range：0~105℃ Matched pair accuracy：±0.1℃ Connecting cable：PVC，OD 4.2mm，2-wire Protection tube：stainless steel 316L，Φ5 Pressure proof PN=16bar(current speed 2m/s) Sensor element：PT1000（PT500/PT100） Connecting：Active thread（copper），G：M10×1 Single sensor meets IEC751，Tolerance Class B±（0.3+0.005|t|）℃ Each temperature sensor pair error meets the requirement of pairing error formula：Δ（ΔT）=5mk/k×ΔT+90mk ΔT; minimum measuring temperature difference.Normally 3℃，But the pairing error of each temperature sensor pair provided by BOCON is no more than 0.1℃ Resistance value at 40℃、70℃、100℃ Insulated resistance in accordance with JB/T8622-1997 (5.4) The constant insulation resistance value of platinum resistance should not be less than 100MΩ,the maximum upper limit of temperature insulation resistance 10MΩ
