EDGE PC Nuvo-10109GC

Edge AIAIAI Inference

Overview

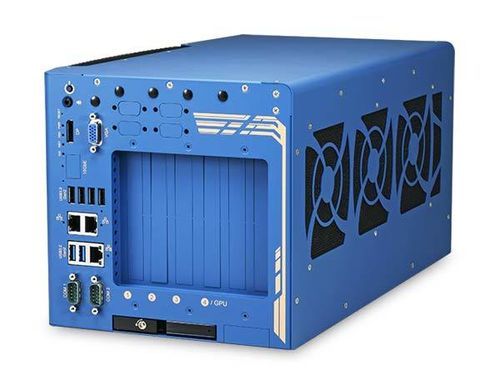

Nuvo-10109GC is an industrial edge AI computer designed to host a single 600W Blackwell-class GPU for high-performance AI inference and generative AI workloads. The platform provides large AI compute capacity, a wide 9V–32V DC input with ignition control for automotive and mobile power sources, reinforced mechanical GPU retention for vibration and shock resilience, and a power architecture that maintains full-rated GPU/system power across the input range.

Key features

• Supports single 600W GPU (PCIe Gen4 x16) with dedicated locking and damping brackets.
• Compatible with Intel® 14th/13th/12th-Gen Core™ processors (LGA1700, 35W/65W).
• Up to 128GB ECC/non-ECC DDR5-4800 via 2x SODIMM.
• Three x8 PCIe slots (Gen3, running at x4) for add-on cards in addition to the GPU slot.
• Connectivity: 6x USB 3.2 Gen2, 2x 2.5GbE, 1x GbE, optional 10GbE, VGA and DisplayPort outputs.
• Front-accessible hot-swap 2.5" SATA tray and optional front M.2 2280 NVMe tray (PCIe Gen4 x4).
• Rugged operation from -25°C to 60°C (depending on CPU/GPU and fan kit) and MIL-STD-810H vibration/shock ratings with damping bracket.

System & performance
Processor support: Intel® 14th/13th/12th-Gen Core CPUs (LGA1700, 35W/65W). Chipset: Intel® R680E. Graphics: integrated Intel® UHD Graphics. Memory: up to 128GB DDR5-4800 (2x 64GB SODIMM). Security: dTPM 2.0 and Intel vPro/AMT support available.

I/O interface
Ethernet: 2x 2.5G (I226-IT), 1x Gigabit (I219-LM), optional 10GBASE-T (AQC113CS). USB: 6x USB 3.2 Gen2 (10 Gbps); 1x internal USB 2.0. Video (integrated): 1x VGA, 1x DisplayPort. Serial: 2x software-programmable RS-232/422/485. Audio: 3.5 mm mic-in / speaker-out jack.

Storage
Front-accessible hot-swap 2.5" SATA tray; 1x M.2 2280 M-key (PCIe Gen4 x4) for NVMe SSD and optional front-accessible M.2 2280 NVMe tray.

Expansion
1x PCIe x16 Gen4 (16 lanes) for GPU; 3x PCIe x8 Gen3 (4 lanes each, running at x4) for add-on cards. Additional mini-PCIe and M.2 sockets with internal SIM support. GPU locking and damping brackets included for mechanical reliability.

Power, mechanical & environmental
Power input: 3-pin + 4-pin pluggable terminal block, 9V–32V DC with ignition control. Dimensions: 224 x 400 x 196 mm (W x D x H). Weight: 7.1 kg. Operating temperature and cooling depend on CPU/GPU selection and optional fan kit. Storage temperature: -40°C to 85°C. Humidity: 10%–90% non-condensing. EMC: CE / FCC Class A (EN 55032 & EN 55035).

Ordering & options
Model: Nuvo-10109GC. Optional features include 10GbE port, front-accessible M.2 2280 NVMe tray, optional fan kit and GPU bracket kits for selected GPU cards. Contact your distributor for configuration and integration support.

Technical specifications

• Model: Nuvo-10109GC
• Single 600W GPU support (PCIe Gen4 x16) with locking bracket
• CPU support: Intel® 14th / 13th / 12th-Gen Core (LGA1700, 35W/65W)
• Chipset: Intel® R680E
• Memory: up to 128GB ECC/non-ECC DDR5-4800 (2x SODIMM)
• Storage: 1x front-accessible hot-swap 2.5" SATA tray; 1x M.2 2280 (PCIe Gen4 x4) + optional front M.2 tray
• Expansion: 1x PCIe x16 Gen4 + 3x PCIe x8 Gen3
• I/O: 6x USB 3.2, 2x 2.5GbE, 1x GbE, optional 10GbE, VGA, DisplayPort, 2x RS-232/422/485
• Power: 9V–32V DC input with ignition control
• Dimensions: 224 x 400 x 196 mm; Weight: 7.1 kg
• Operating temp: -25°C to 60°C (depending on configuration)
• Rugged: MIL-STD-810H vibration & shock ratings (with damping bracket)
