Wall-mount enclosure PEXI-G360

for DIN railrectangularindustrial

Introduction

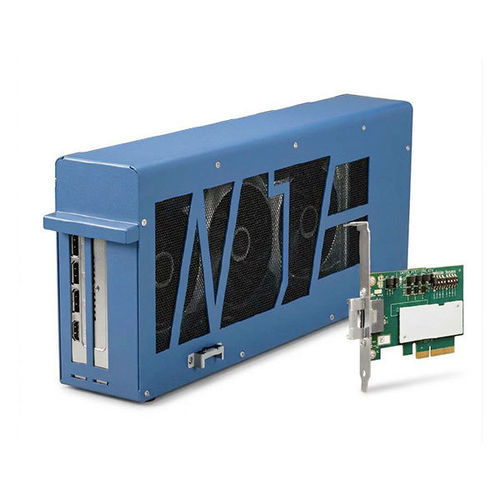

The PEXI-G360 Suite is a rugged, plug-and-play, 360W eGPU retrofit kit designed to add modular AI acceleration to existing industrial vision computers and space-constrained outdoor in-vehicle or AMR systems. The suite includes the external GPU cassette PEXI-G360, the PCIe-to-PEXI adapter PCIe-SAS441, and a 60cm PEXI 8i cable.

PEXI protocol and design highlights
PEXI is a proprietary external high-speed I/O protocol with integrated redrivers and remote power-management sideband to preserve signal integrity up to PCIe Gen4 x4 over a 60cm cable. The PEXI connector uses specialized covers to improve shock and vibration resistance and to prevent accidental disconnection in mobile and industrial environments.

PEXI-G360

• Rugged external GPU enclosure supporting selected NVIDIA SFF-ready 360W GPUs (example models: RTX Pro 5000, Pro 6000 MAX-Q or similar)
• Includes GPU retention bracket for select models
• Optional damping bracket / wall-mount and DIN-rail mounting options
• Industrial power design with 9V–32V wide DC input and patent-pending power management
• MIL-STD-810H compliance with GPU installed
• Rugged thermal range: operating −25°C to 60°C

PCIe-SAS441

• PCIe-to-PEXI adapter card implementing PCIe Gen4 x4 with onboard PCIe redriver
• Dedicated PEXI connector cover for improved shock and vibration resistance

Use cases
Designed for modular AI upgrades of industrial computers, in-vehicle and on-robot deployments requiring wide DC input, and machine vision lines where optional discrete AI acceleration is needed.

Ordering information and optional accessories

• PEXI-G360 Suite: Rugged external GPU enclosure for 360W NVIDIA SFF-ready GPUs with PCIe-SAS441 and 60cm PEXI 8i cable
• PEXI-G360: Rugged external GPU enclosure for 360W NVIDIA SFF-ready GPUs
• PA-480W-DIN: 480W AC-DC power adapter DIN-rail mount, 24V 20A, 90–264VAC / 127–370VDC, terminal block, -20°C to 70°C
• Damping bracket ASS'Y #06: Damping / wall-mount bracket assembly for PEXI-G360
• DIN-MOUNT ASSY #08: DIN-rail mount bracket assembly for PEXI-G360

Technical specifications

• I/O interface: External PCIe connector: 1x PCIe Gen4 x4 via PCIe-SAS441 or PEXI interface
• Power supply: DC input: 1x 4-pin pluggable terminal block for 9 to 32V DC input (max input current per pin: 40A)
• Mechanical: Dimensions: 76 mm (W) x 385 mm (D) x 170 mm (H)
• Mechanical: Weight: 2.0 kg
• Mechanical: Mounting: Optional damping/wall-mount bracket or DIN-rail mount
• Environmental: Operating temperature: -25°C to 60°C
• Environmental: Storage temperature: -40°C to 85°C
• Environmental: Humidity: 10% to 90% non-condensing
• Environmental: Vibration: MIL-STD-810H, Method 514.8, Category 4
• Environmental: Shock: MIL-STD-810H, Method 516.8, Procedure I
• EMC / Certification: CE / FCC Class A according to EN 55032 & EN 55035
