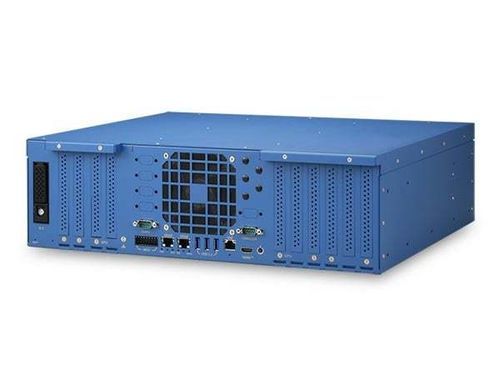

Storage server RGS-9805GC

networkcalculationGPU

Overview
Driven by AMD® EPYC™ 9005 Turin processors and dual NVIDIA® RTX PRO™ 6000 GPUs, the RGS-9805GC is a rugged HPC server engineered for extreme environments. It provides high CPU/GPU compute density with shock- and vibration-resistant mounting, a sealed airflow partition for efficient heat dissipation, and a wide 9–32V DC input with automotive ignition control for in-vehicle or mobile deployments.

Key features

• Supports dual 400W NVIDIA® FHFL GPUs via PCIe Gen5 x16 (two dual-slot FHFL GPU slots)
• Five additional PCIe Gen5 x16 slots (x16/x8 signal) for high-bandwidth add-ons (CoaXPress, GMSL2, 10GbE, USB3 frame grabbers)
• Up to 160 cores / 320 threads with AMD® EPYC™ 9005 Turin 400W CPUs
• Up to 384GB ECC DDR5-6000 RDIMM (6x RDIMM slots)
• 2x 10GBASE-T ports with screw-lock (Broadcom 57416) supporting 10G/1G and RDMA (RoCEv2)
• 1x GbE port with screw-lock (Intel i210) supporting Wake-on-LAN
• Wide 9V–32V DC input with ignition control and onboard ASIL-B capable MCU for automotive-grade system monitoring
• Compact 3U 19" rack-mount chassis, 388 mm depth, MIL-STD-810H for vibration and shock
• Rugged operation from -25°C to 60°C with defined non-throttling CPU/GPU performance bands

Storage & expansion highlights
2x M.2 2280 M-key (PCIe Gen4x4 NVMe), 1x front-accessible 2.5" U.2 tray (PCIe Gen3x4), 1x internal SlimSAS (PCIe Gen3x4), and 2x full-size mini-PCIe (one with micro-SIM) for cellular or I/O modules.

Specification (table)
System Core — Processor: AMD® EPYC™ 9005 Turin series server 400W CPU, up to 160 cores / 320 threads
System Core — Graphics: Silicon Motion SM768 (HDMI 1920×1080)
System Core — Memory: Up to 384GB ECC DDR5 6000 RDIMM (6 slots)
System Core — TPM: dTPM 2.0
I/O Interface — 10G Ethernet: 2x 10GBASE-T (Broadcom 57416, 10G/1G, RoCEv2)
I/O Interface — Gigabit Ethernet: 1x GbE (Intel i210, WOL)
I/O Interface — USB: 3x USB 3.2 Gen1 (5 Gbps)
I/O Interface — Serial: 1x sw-programmable RS-232/422/485 (COM1); 3x RS-232 (COM2/3/4) or 1x RS-422/485 (COM2)
I/O Interface — 2x8 Pin Terminal Block: ignition control, power LED, MCU RS-232, MCU isolated DO, MCU isolated CAN 2.0
Storage Interface — M.2: 2x M.2 2280 M-key (PCIe Gen4x4 NVMe)
Storage Interface — U.2 NVMe: 1x front-accessible 2.5" U.2 tray (up to 15 mm, PCIe Gen3x4)
Storage Interface — SlimSAS: 1x internal SlimSAS (PCIe Gen3x4)
Expansion Bus — PCI Express: 2x PCIe x16 Gen5 for 400W dual-slot NVIDIA FHFL GPUs; 4x PCIe x16 Gen5 (16-lane); 1x PCIe x16 Gen5 (8-lane)
Mini-PCIe — 2x full-size mini-PCIe sockets (PCIe + USB 2.0; one with micro-SIM)
Power Supply — DC Input: 1x 4-pin + 1x 5-pin pluggable terminal block for 9V to 32V DC input (per-pin allowable current 40A; with 9V input max system load 1440W)
Mechanical — Dimension: 444 mm (W) x 388 mm (D) x 130 mm (H)
Mechanical — Weight: 12.9 kg (excluding mounting kits)
Mechanical — Mounting: wall-mount (standard), rack-mount (standard), damping bracket (standard)
Environmental — Operating Temperature: -25°C to 60°C. Under continuous 100% CPU/GPU utilization, non-throttling maintained as: 55°C–60°C: up to 300W CPU and 200W GPU; 45°C–50°C: up to 400W CPU and 300W GPU
Environmental — Storage Temperature: -40°C to 85°C
Environmental — Humidity: 10% to 90%, non-condensing
Environmental — Vibration: MIL-STD-810H Method 514.8 Category 4 (Operating)
Environmental — Shock: MIL-STD-810H Method 516.8 Procedure I (Operating) 20G; IEC 60068-2-27:2008 (Operating) 50G for ±Z axis
EMC — CE / FCC Class A according to EN 55032 & EN 55035

Applications

• High-speed autonomous trucking and mobile autonomous vehicles
• In-vehicle HD mapping and high-speed data logging
• Real-time robotics and autonomous logistics in harsh environments

Characteristics / technical specifications

• Model: RGS-9805GC
• Brand: Neousys Technology
• Processor: AMD® EPYC™ 9005 Turin series server 400W CPU, up to 160 cores / 320 threads
• GPU support: 2x NVIDIA® FHFL 400W GPUs via PCIe Gen5 x16 (dual-slot FHFL)
• Additional PCIe: 5x PCIe Gen5 x16 slots (x16 / x8 signals)
• Memory: Up to 384GB ECC DDR5 6000 RDIMM (6 RDIMM slots)
• Storage: 2x M.2 2280 (PCIe Gen4x4 NVMe), 1x front-accessible U.2 tray (PCIe Gen3x4), 1x SlimSAS (PCIe Gen3x4)
• Network: 2x 10GBASE-T (Broadcom 57416, RoCEv2), 1x GbE (Intel i210)
• USB: 3x USB 3.2 Gen1 (5 Gbps)
• Video: 1x HDMI via SM768 (1920x1080)
• Serial: Software-programmable RS-232/422/485 + RS-232 ports
• Expansion: 2x full-size mini-PCIe (one with micro-SIM)
• System monitoring: Onboard automotive ASIL-B capable MCU
• Power input: 9V–32V DC via pluggable terminal blocks with ignition control (per-pin allowable current 40A)
• Chassis: 3U 19" rack-mount, 388 mm depth
• Operating temperature: -25°C to 60°C (with defined non-throttling performance bands)
• Standards: MIL-STD-810H (vibration, shock), CE / FCC Class A (EN 55032 & EN 55035)
• Weight: 12.9 kg (excl. mounting kits)
