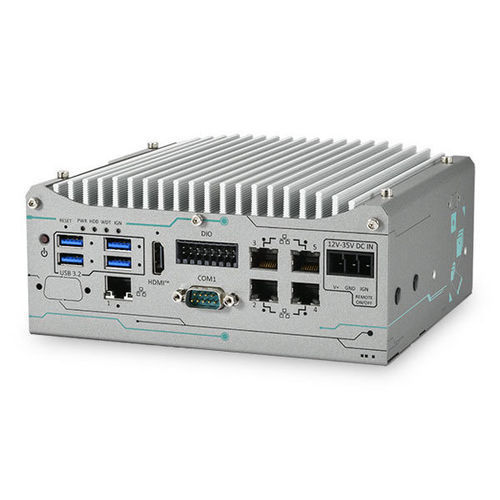

EDGE PC POC-960GC

GPUembeddedwall-mounted

Overview
The POC-960GC is an ultra-compact x86 GPU computer designed for space-constrained industrial edge AI inference deployments. Powered by the AMD® Ryzen™ PRO 8640U and capable of accommodating an NVIDIA® low-profile GPU up to 70W, it delivers hybrid CPU+GPU computing for real-time inference in robotics, machine vision, smart city systems and interactive edge AI applications.

Key Features

• AMD® Ryzen™ PRO 8640U processor (6C/12T, 15W–30W TDP) with integrated Ryzen™ AI acceleration
• Supports NVIDIA® low-profile GPU cards up to 70W TDP via low-profile PCIe x16 (Gen4, 8 lanes)
• Up to 32 GB ECC/non-ECC DDR5-5600 SDRAM (single SODIMM socket)
• Rich connectivity: 4x GbE (optional PoE+), 1x 2.5GbE, 4x USB 3.2 Gen2 (screw-lock), 1x HDMI 2.0b
• Storage & expansion: 1x M.2 2280 NVMe (PCIe Gen3 x4), 2x full-size mini-PCIe (one with internal micro SIM)
• Wide operating temperature range with optional fan for higher TDP operation
• 12–35V DC input with remote control or optional ignition power control

System Core (summary)
Processor: AMD® Ryzen™ PRO 8640U (6C/12T, 3.5/4.9 GHz, 15W–30W TDP). Chipset / Graphics: AMD® Radeon RDNA3 Graphics (16 TOPs NPU with Ryzen™ AI; 31 TOPs total SoC). Memory: up to 32 GB DDR5-5600 (one SODIMM). Security: supports dTPM 2.0.

I/O Interface (summary)
Ethernet: 1x 2.5GbE (Intel® I226-V, WOL, port #1); 4x GbE (Intel® I350-AM4, ports #2–5). PoE+: optional IEEE 802.3at for ports #2–5 (100W total budget). Video: 1x HDMI 2.0b (up to 3840×2160 @60Hz). Serial: 1x software-programmable RS-232/422/485 (COM1). USB: 4x USB 3.2 Gen2 (screw-lock). Digital I/O: 4-CH isolated DI and 4-CH isolated DO.

Storage & Expansion (summary)
M.2: 1x M.2 2280 M-key (PCIe Gen3 x4) for NVMe SSD. PCIe: 1x low-profile PCIe x16 @ Gen4 (8 lanes) for NVIDIA® GPU up to 70W. Mini-PCIe: 2x full-size mini-PCIe sockets (1x internal micro SIM).

Power & Mechanical
DC input: 3-pin pluggable terminal block for 12–35V DC with remote control or optional ignition power control. Dimension: 175 mm (W) × 159 mm (D) × 77 mm (H). Weight: 1.8 kg. Mounting: wall-mount (standard).

Environmental & Reliability
Operating temperature: 25°C–60°C (15W, no fan); -25°C–45°C (30W, no fan); -25°C–60°C (30W, with fan). Storage temperature: -40°C–85°C. Humidity: 10%–90% non-condensing. Vibration & shock: MIL-STD-810H (Method 514.8 Cat 4; Method 516.8 Proc I). EMC: CE / FCC Class A (EN 55032 & EN 55035).

Ordering & Variants
POC-960GC — Compact GPU computer supporting up to 70W GPU and AMD® Ryzen™ 8640U. POC-960GC-PoE — Same platform with IEEE 802.3at PoE+ option.

Optional Accessories

• PA-160W-OW — 160W AC/DC adapter (20V/8A), -30°C to 70°C operating range
• PA-280W-ET2 — 280W AC/DC adapter (24V/11.67A), -30°C to 70°C operating range
• AccsyBx-Cardholder-960GC-RTX Pro 2000 — GPU bracket kit for RTX PRO 2000 Blackwell
• AccsyBx-334LP-bkt-POC-960GC — PCIe bracket kit for PCIe-334LP
• AAccsyBx-FAN-POC-960GC — Fan assembly (92×92×25 mm)

Technical specifications

• Processor: AMD® Ryzen™ PRO 8640U (6C/12T, 3.5/4.9 GHz, 15W–30W TDP)
• Graphics / NPU: AMD® Radeon RDNA3 (16 TOPs NPU with Ryzen™ AI; 31 TOPs total SoC)
• Memory: up to 32 GB DDR5-5600 (one SODIMM)
• Ethernet: 1x 2.5GbE (Intel® I226-V) + 4x GbE (Intel® I350-AM4)
• PoE+: optional IEEE 802.3at for ports #2–5 (100W total)
• USB: 4x USB 3.2 Gen2 (screw-lock)
• Video: 1x HDMI 2.0b (3840×2160 @60Hz)
• Serial: 1x COM (RS-232/422/485, software-programmable)
• Digital I/O: 4-CH isolated DI, 4-CH isolated DO
• Storage: 1x M.2 2280 (M-key, PCIe Gen3 x4) for NVMe SSD
• Expansion: 1x low-profile PCIe x16 (Gen4, 8 lanes) for GPU; 2x full-size mini-PCIe (1x micro SIM)
• Power input: 12–35V DC via 3-pin pluggable terminal block (remote control / optional ignition)
• Dimensions: 175 × 159 × 77 mm; Weight: 1.8 kg; Mounting: wall-mount
• Operating temp: 25°C–60°C (15W, no fan); -25°C–45°C (30W, no fan); -25°C–60°C (30W, with fan)
• Storage temp: -40°C–85°C; Humidity: 10%–90% non-condensing
• Vibration & Shock: MIL-STD-810H (514.8 Cat 4; 516.8 Proc I)
• EMC: CE / FCC Class A (EN 55032 & EN 55035)
• Datasheet available (product datasheet PDF)
