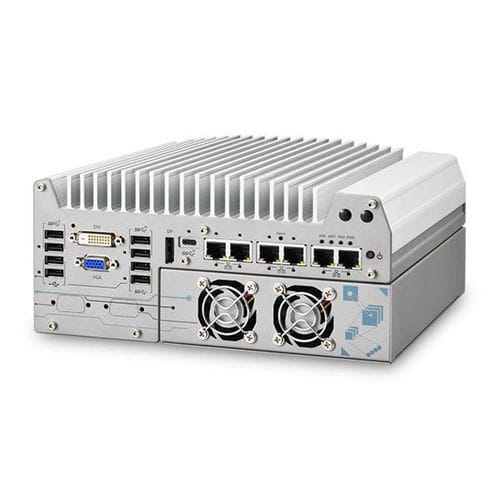

EDGE computer Nuvo-9154GC

boxembeddedwall-mounted

Overview
Nuvo-9154GC is engineered for AMRs in warehousing, logistics, and agriculture. Featuring on-board GMSL2 connectors with an Intel® 14th/13th/12th Gen platform and a 150W NVIDIA® Blackwell GPU, it is the ultimate hardware foundation for real-time multi-sensor fusion and complex spatial path planning.

Introduction
Intel® 14th/13th/12th Gen processors deliver exceptional computation for SLAM stability and LiDAR-based path planning in logistics automation. Combined with a 150W NVIDIA® GPU (up to 19.2 TFLOPS, Blackwell, FP32), Nuvo-9154GC enables high-precision object recognition and contour analysis. Nuvo-9154GC provides driver-ready support for selected 2MP to 8MP automotive GMSL2 cameras, and it also has a dedicated porting mode to integrate unlisted GMSL2 cameras with varying resolutions via I2C configurations. Despite its compact footprint, the Nuvo-9154GC offers multiple high-speed I/O, internal expansion sockets, FAKRA connectors and a dedicated GPU bracket to enhance shock and vibration resistance, plus wide-range DC input and wide-temperature operation for demanding AMR environments.

Key Features (summary)

• Supports Intel® 14th/13th/12th-Gen Core™ CPUs (LGA1700, 35W/65W modes)
• Supports NVIDIA® RTX™ series GPU up to 150W TDP (150W Blackwell GPU example)
• Driver-ready support for selected automotive GMSL2 cameras (4x) with porting mode via I2C
• 1x GPS PPS input and 1x GPS PPS output for frame synchronization calibration (plus PPS LED)
• 2x CAN 2.0, 5x 2.5GbE and 1x GbE with PoE+ (ports 3–6)
• 1x USB 3.2 Gen2x2 Type-C and multiple USB 3.2 Type-A ports
• Wide-temperature operation down to -25°C; wide-range 8–48V DC input with ignition power control

I/O & Expansion highlights

• On-board 4-port Mini-FAKRA Z connector for 4x GMSL2 automotive cameras; example supported configurations: Configuration A: 2x 8MP + 1x 3MP @30 FPS; B: 4x 5MP @30 FPS; C: 4x 3MP @30 FPS; D: 4x 2MP @60 FPS; E: 4x 2MP @30 FPS
• Ethernet: 5x 2.5G (I226-IT / I225-IT) + 1x Gigabit (I219-LM) with screw-lock
• PoE+: IEEE 802.3at PSE for ports 3–6, 100W total budget
• USB: 1x USB 3.2 Gen2x2 (20 Gbps) Type-C with screw-lock; 4x USB 3.2 Gen2x1 (10 Gbps) Type-A; 2x USB 3.2 Gen1x1 (5 Gbps) Type-A; 2x USB 2.0
• Video (integrated): 1x VGA (1920x1200), 1x DVI-D (1920x1200), 1x DisplayPort (4096x2304)
• Serial: 2x software-programmable RS-232/422/485 (COM1/COM2); 2x RS-232 (COM3/COM4)
• Audio: 1x 3.5 mm jack (mic-in & speaker-out)
• Storage: 2x internal SATA for 2.5" HDD/SSD (RAID 0/1); 1x M.2 2280 M-key (PCIe Gen4 x4) for NVMe
• Expansion bus: 1x PCIe x16 slot@Gen3 (in cassette) for GPU up to 150W TDP (max GPU dimension 188 mm L x 131 mm W, dual-slot); 1x full-size mini PCIe; 1x M.2 3042/3052 B-key with SIM slot for M.2 4G/5G module

Power, mechanical & environmental

• DC Input: 1x 3-pin pluggable terminal block for 8–48V DC (system tolerates fluctuation; recommended min voltages depend on configuration)
• Remote control & LED output: 1x 3-pin pluggable terminal block for remote control and PWR LED output
• Ignition control: 15 pre-defined on/off delay modes via panel rotary switch
• Dimension: 240 mm (W) x 225 mm (D) x 110.5 mm (H)
• Weight: 3.97 kg
• Mounting: Wall-mount (standard) or optional damping bracket
• Operating temperature: With 35W CPU + 150W GPU: -25°C to 60°C; With 65W CPU + 150W GPU configured as 35W TDP: -25°C to 60°C; with 65W CPU mode limit: -25°C to 50°C (thermal throttling possible under sustained full load)
• Storage temperature: -40°C to 85°C; Humidity: 10%–90% non-condensing
• Vibration & shock: MIL-STD-810H (Method 514.8 Category 4; Method 516.8 Procedure I)
• EMC: CE / FCC Class A (EN 55032 & EN 55035)

Ordering & variants
Product marketed as Nuvo-9154GC with several SKU/variant configurations (examples include variants with expansion card, standalone, fanless, different USB configurations). Datasheet available describing full technical details.

Caractéristiques / Spécifications techniques

• Processor: Supports Intel® 14th/13th/12th-Gen Core™ (LGA1700, 65W/35W TDP ranges) — examples: i9-14900/i9-14900T, i7-14700/i7-14700T, i5/i3 and selected E/TE series
• Chipset: Intel® Q670E PCH
• Graphics: Integrated Intel® UHD Graphics 770 (32EU) / 730 (24EU)
• Memory: Up to 128 GB DDR5-4800 (2x SODIMM)
• AMT: Supports Intel vPro / AMT 16.0
• TPM: Supports dTPM 2.0
• GMSL2: 4x GMSL2 via 1x 4-port Mini-FAKRA Z connector; multiple camera configuration support
• GPS PPS: 1x isolated input, 1x output, 1x PPS LED
• CAN: 2x CAN 2.0 with configurable termination
• Ethernet: 5x 2.5G (I226-IT/I225-IT) + 1x GbE (I219-LM) screw-lock
• PoE+: IEEE 802.3at PSE on ports 3–6 (100W total)
• USB: 1x USB3.2 Gen2x2 Type-C (20 Gbps, screw-lock); 4x USB3.2 Gen2 Type-A (10 Gbps); 2x USB3.2 Gen1 Type-A (5 Gbps); 2x USB2.0
• Video ports: VGA, DVI-D (both 1920x1200), DisplayPort (4096x2304)
• Serial: 2x RS-232/422/485 (programmable), 2x RS-232
• Audio: Mic-in & speaker-out (3.5 mm)
• SATA HDD: 2x internal SATA for 2.5" HDD/SSD (RAID 0/1)
• M.2: 1x M.2 2280 M-key (PCIe Gen4 x4) for NVMe; 1x M.2 3042/3052 B-key with SIM slot (4G/5G)
• Mini-PCIe: 1x full-size mini PCIe socket
• PCIe/PCI: 1x PCIe x16 slot @ Gen3 in cassette for GPU up to 150W (188 mm x 131 mm, dual-slot)
• Power input: 3-pin pluggable terminal block 8–48V DC; recommended min voltages vary by config
• Remote ctrl & LED: 1x 3-pin pluggable terminal block
• Ignition control: 15 pre-defined delay modes via rotary switch
• Dimensions & weight: 240 x 225 x 110.5 mm; 3.97 kg
• Mounting: Wall-mount standard; optional damping bracket
• Environmental: Operating -25°C to 60°C (depending on CPU TDP and GPU); storage -40°C to 85°C; humidity 10%–90% non-condensing
• Ruggedization: MIL-STD-810H vibration & shock; CE/FCC Class A
