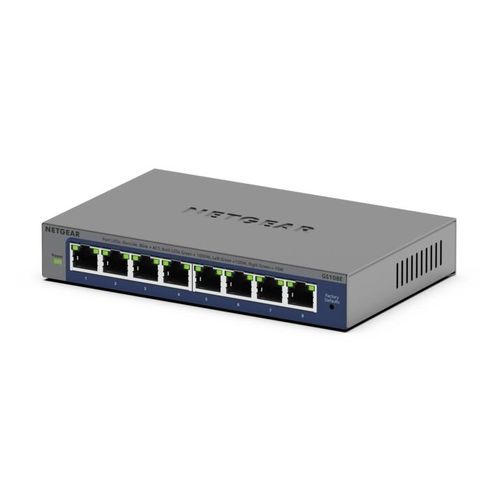

Smart network switch GS108E

managed8 portsgigabit Ethernet

Overview
NETGEAR GS108E (also referenced as GS108Ev4 in some materials) is an Easy Smart managed switch that provides Gigabit Ethernet connectivity with essential management features for small business and advanced home networks. Its fanless, energy-efficient design supports quiet operation and simple deployment via plug-and-play with optional Easy Smart configuration.

Key features

• 8 x Gigabit Ethernet ports for wired device connectivity
• VLAN support for network segmentation
• Quality of Service (QoS) for traffic prioritization
• IGMP Snooping for efficient multicast handling
• Rate limiting and traffic monitoring capabilities
• Auto-MDI/MDIX — no crossover cables required
• Auto-negotiation — automatic connection at highest common speed
• Energy-efficient, fanless design for silent operation
• Versatile mounting: desktop installation or wall-mount with provided hardware

Product details
This Easy Smart managed switch adds VLAN, QoS, IGMP Snooping, rate limiting and traffic monitoring to standard plug-and-play Gigabit connectivity, enabling basic management and monitoring suitable for small offices, home offices and retail deployments that require more control than an unmanaged switch.

Package & Power
Includes external power adapter. Typical maximum power consumption is low (spec sheet lists 3.7 W maximum). Power input: 12V / 1.5A.

Downloads
Datasheet, installation guide and user manual are available for this product (see product documentation).

Technical specifications

• Model: GS108E (also referenced as GS108Ev4)
• Brand: NETGEAR
• Ports: 8 x 1G
• 10 Gbps Ports: n/a
• PoE ports: n/a
• Total PoE budget: n/a
• Max MAC entries: 4K
• Buffer size: 192 KB
• VLANs supported: 64
• LAGs: 2 LAGs, up to 4 members per LAG
• Supported multicast groups: 128
• Max source ports allowed (many-to-1): 7
• Power supply: External
• Power input: 12V / 1.5A
• Max power consumption: 3.7 W (maximum)
• Fans: 0 (fanless)
• Acoustic noise @25°C: 0 dBA
• Operating temperature: 0° to 40° C
• MTBF: 2,463,431 hours
• EMC compliance: Class B
• Weight: 0.5 kg
• Dimensions (WxDxH): 158 x 101 x 29 mm
