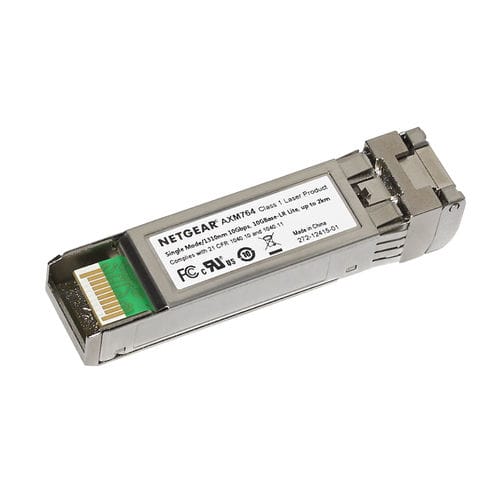

Gigabit Ethernet transceiver AXM764

for fiber opticsdata transmissionfor fiber optics

Product Overview
NETGEAR ProSafe 10 Gigabit SFP+ transceiver model AXM764 provides hot‑swappable 10 Gigabit Ethernet connectivity for legacy single‑mode 9/125 µm fiber. It fits standard SFP+ ports on NETGEAR M5300, M6100, M7100 and M7300 series Managed Switches and is supported by select Smart and Plus switches.

Features

• 10 Gigabit Ethernet over 10GBase-LR Lite for single‑mode 9/125 µm fiber
• SFP+ form factor with LC duplex connector, hot‑swappable
• Compatible with NETGEAR M5300, M6100, M7100, M7300 series; select Smart and Plus switches
• Designed for interoperability on legacy 9/125 µm fiber up to 2 km

Performance & Physical
Delivers 10GBASE-LR Lite transmission up to 2 km (1.243 miles) over single‑mode 9/125 µm fiber. 10GBASE-LR Lite is a vendor designation (not a formal IEEE standard) and can interoperate with AXM762 (10GBASE-LR) when distance does not exceed 2 km. Uses LC duplex connector and standard SFP+ mechanical form factor.

Support & Warranty
Model AXM764 (ordering part number AXM764-10000S) is backed by NETGEAR limited 5‑year hardware warranty. Support and documentation available from NETGEAR for this part number.

Technical specifications

• Model: AXM764
• Ordering part number: AXM764-10000S
• Form factor: SFP+
• Data rate: 10 Gbit/s
• Protocol / Type: 10GBASE-LR Lite
• Fiber type: Single‑mode 9/125 µm
• Maximum reach: Up to 2 km (1.243 miles)
• Connector: LC duplex
• Compatibility: NETGEAR M5300, M6100, M7100, M7300 series; select Smart and Plus switches
• Hot‑swappable: Yes
• Warranty: NETGEAR limited 5‑year hardware warranty
