AC/DC power supply APS550W

single-phasePower-over-Ethernetmodular

Overview

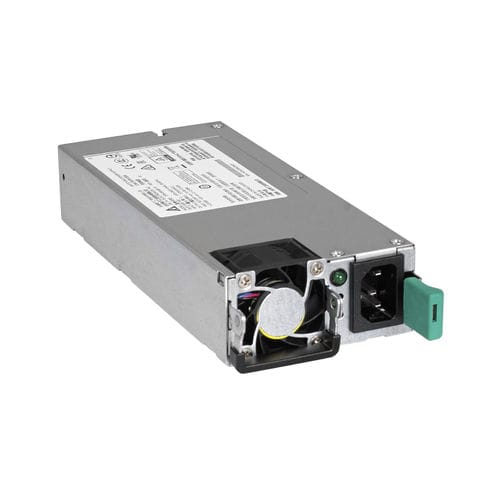

550W modular power supply unit APS550W designed to add PoE capacity or provide redundancy for NETGEAR M4300-28G-PoE+ (GSM4328PA) and M4300-52G-PoE+ (GSM4352PA) switches. Provides AC input and high output power to support PoE-enabled switch models.

Features

• Additional PSU for M4300-28G-PoE+ (GSM4328PA) and M4300-52G-PoE+ (GSM4352PA)
• C14 AC mains connector
• 110V–240V AC input range
• Up to 575W output power at 110/220V AC (platform dependent)
• Modular design to increase PoE capacity or provide redundancy

Support & Warranty

• NETGEAR limited 5-year Hardware Warranty
• Manufacturer support available via NETGEAR support channels

Images
Product images and multiple resolution variants available in the gallery.

Specifications

• Model: APS550W
• Compatibility: M4300-28G-PoE+ (GSM4328PA), M4300-52G-PoE+ (GSM4352PA)
• Connector: C14 AC inlet
• Input voltage: 110V–240V AC
• Output power: Up to 575W at 110/220V AC (platform dependent)
• Type: Modular 550W power supply for M4300 series (PoE PA models)
• Retailer item id: APS550W-100NES
• Warranty: NETGEAR limited 5-year Hardware Warranty
