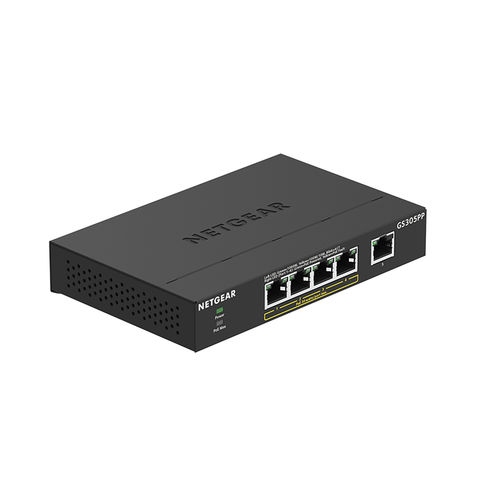

Unmanaged switch GS305PP

5 portsgigabitgigabit Ethernet

Overview
5-Port Gigabit unmanaged switch delivering four PoE+ ports and up to 83W total PoE budget to power wireless access points, IP cameras, IP phones and other PoE devices.

Key features

• Plug-and-play operation with no software or configuration required
• Non-blocking switching architecture for maximum throughput at wire speed
• Fanless design for silent operation (suitable for noise-sensitive environments)
• Energy Efficient Ethernet (IEEE 802.3az) to reduce power consumption
• Durable metal case, compact and rugged
• Versatile mounting options: desktop and wall placement; wall mount kit included
• Standards-based design for interoperability with standards-based PDs

Ports & PoE

• 5 x 10/100/1000 Mbps Gigabit ports (Auto Uplink)
• 4 x 802.3af PoE ports
• 4 x 802.3at PoE+ ports (up to 30W per port)
• PoE budget: Up to 83W total
• NETGEAR PoE auto-balance and allocation automatically manages power per port depending on PD needs

Performance & QoS

• Non-blocking architecture / wire-speed switching
• IEEE 802.1p QoS support
• Jumbo frame support: up to 9,216 bytes
• Queue WRR ratio: 1:3:5:7:8:10:12:15
• MAC table size: 2k entries
• Packet buffer size: 128 KB

Physical & Environmental

• Metal case—durable and rugged
• Silent fanless operation
• Operating temperature: 0° to 40°C (32° to 104°F)
• Mounting: supports desktop and wall placement (wall mount kit included)

Additional details

• Energy-efficient design lowers operating cost
• Plug-and-play, zero maintenance

Technical specifications

• Model: GS305PP
• Speed: Gigabit
• Number of ports: 5
• Port types: 5 x 10/100/1000 Mbps (Auto Uplink)
• Number of PoE ports: 4 PoE+ ports (802.3af/802.3at) — up to 30W per port
• PoE budget: Up to 83W total
• Energy Efficient Ethernet (IEEE 802.3az): Yes
• Jumbo frame support: 9,216 bytes
• Queue WRR ratio: 1:3:5:7:8:10:12:15
• MAC table size: 2k
• Packet buffer size: 128 KB
• IEEE 802.1p QoS: Yes
• Power consumption (Max/Standby): 88.89W / 2.89W
• Operating temperature: 0–40°C (32–104°F)
• MTBF (hours): 4,113,947 hrs / 6,189,896 hrs (values shown on page)
• FCC Class: Class B
• Fans: 0 (fanless)
• Acoustic noise level @25°C: Fanless
• Dimensions: 158 x 101 x 27 mm (6.2 x 4.0 x 1.1 in)
• Weight: 0.40 kg (0.88 lb)
• Case: Metal
• Mounting: Desktop and wall (wall mount kit included)
• Warranty: NETGEAR limited lifetime hardware warranty (see vendor for terms)
