Managed switch XSM4316S

16 portsfiber opticslayer 3

Overview

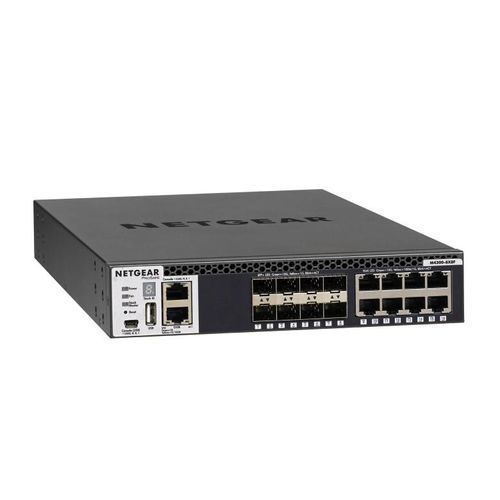

Stackable half-width 16-port fully managed switch M4300-8X8F (XSM4316S) designed for AV-over-IP, Top-of-Rack and professional network deployments. Supports advanced L2/L3 features, stacking, high availability and standard management interfaces.

Key features

• 16 total ports: 8x 10GBase-T and 8x SFP+ (1G/10G optics supported)
• Stackable half-width form factor for redundant Top-of-Rack deployments
• Pre-configured out-of-box L2 multicast (SDVoE-ready) for AV-over-IP
• Non-blocking switching fabric for low, near-zero latency
• NETGEAR IGMP Plus for simplified multicast control and prevention of network flooding
• High availability: NSF virtual chassis architectures with hitless failover
• Multi-resiliency: stacking and distributed link aggregation for zero downtime and load balancing
• Per-VLAN Spanning Tree interoperability (PVST+/PVRSTP)
• Advanced IPv4/IPv6 security: DHCP snooping, IP Source Guard, DoS mitigation, malicious code detection
• Multiple management options: CLI, full web GUI, SNMP, sFlow, RMON and NMS300 single-pane management

Ports & Connectivity

• 16 ports total
• 8 x 10GBase-T (supporting 100M/1G/10G where applicable)
• 8 x SFP+ ports (1G/10G optics support)
• Out-of-band management: 1G Ethernet management port (rear)
• Console: RJ45 RS232 (rear) and mini-USB (front)
• USB storage port (front) for config and logs

Management & Operations

• Full-featured Web console (GUI) for intuitive management
• Command Line Interface (CLI) for advanced configuration
• Single-pane-of-glass NMS300 management platform with mass-configuration support
• Dual firmware image and configuration support for updates with minimal service interruption

AV-over-IP & Performance

• Zero-touch AV-over-IP capability with pre-configured L2 multicast
• Non-blocking fabric and low latency suitable for professional AV networks
• Dedicated features for ProAV deployments and engineering services available for design and install support

Reliability & Resilience

• Hitless failover across the stack (NSF)
• Stacking across 10/40G and 1G models using any 10G/40G port and any media type (RJ45, SFP+, DAC)
• Link dependency to enable/disable ports based on link state of other ports

Warranty & Support
This product is backed by NETGEAR limited lifetime hardware warranty. Support options include purchasable service tiers providing different response levels and RMA options.

Technical specifications

• Product family: NETGEAR M4300 fully managed switches
• Model: XSM4316S (M4300-8X8F)
• Form factor: Stackable half-width (16-port)
• Ports: 16 total (8 x 10GBase-T, 8 x SFP+)
• Layering: L2 with advanced L2/L3 features and multicast support
• Multicast: Pre-configured L2 multicast, NETGEAR IGMP Plus
• Management: CLI, Web GUI, SNMP, sFlow, RMON, NMS300 support
• Console: RJ45 RS232 (rear) and mini-USB (front)
• Storage: USB front port for config/logs
• Stacking: Supported (mix & match stacking across compatible M4300 models)
• Power / PoE: Variant information indicates PoE capability up to 49 W for certain SKUs (refer to datasheet)
• Cooling: Front-to-back (model-dependent)
• Switching capacity: Platform-dependent (refer to datasheet for fabric and performance numbers)
• Warranty: NETGEAR limited lifetime hardware warranty
