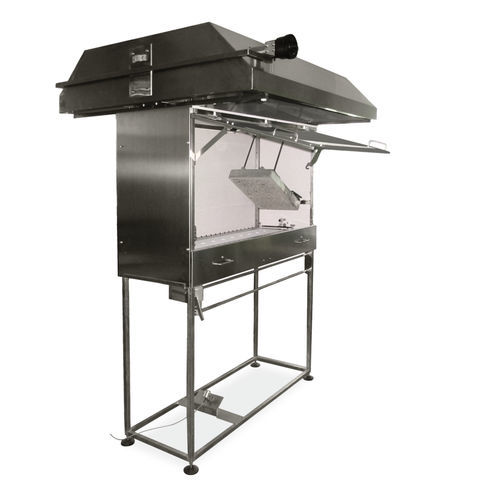

Gas radiant panel TBB 913

for fire reaction testing

System for the reaction of floorings to fire tests – determination of the burning behavior using a radiant heat source in accordance with EN ISO 9239-1 The TBB 913 from NETZSCH TAURUS Instruments GmbH is easy to operate, offering innovative control and data acquisition options in an intuitive format with ample user guidance. The high-resolution color touch display on the “TBB Control“ cabinet allows for measuring and control with the integrated Single Board Computer, Windows 10 IoT Enterprise 2019 LTSC operating system and TBB software. There is thus no longer any need for manual controls such as switches, controllers or buttons; the status of the testing system is clearly displayed and the systems prevents any critical operating errors. Well thought-out details along with the use of high-quality materials guarantee the TBB 913 test system a long product life and a low degree of wear and tear. Method Test Setup The floor covering to be tested is placed horizontally under a gas-heated radiator. The defined heat flux profile simulates the heat load on the floor in the event of a fire. Test Chamber The stainless steel test chamber has a carrier plate with specimen holder, which in turn is fitted with a pull-out. The flap with viewing window at the front of the test chamber allows the test process to be observed. Specifications Measurement method - Determination of the burning behavior of floorings in accordance with EN ISO 9239-1 Test chamber - Stainless steel, calcium silicate lining, T: 13.0 mm Flap with fire-resistant glazing (H x W): 11 cm x 110 cm Sample holder - Welded L-profile design, stainless steel 4x fixing clamps for sample installation
