Emission gas analysis opacity meter TRD 908

for exhaust gaswith LED light source

Overview

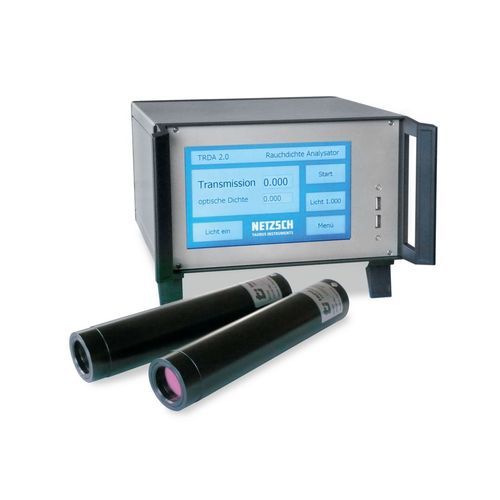

The TRD 908 is a smoke density test device (light measurement system) for determining smoke production of materials during thermal decomposition. It supports measurement procedures referenced in DIN 50055, ISO 3182 and ISO/TS 19850 and can be used as a stand-alone instrument or integrated into fire testing and exhaust duct systems.

Key functions & usage

• Selectable display mode for optical transmission and/or optical smoke density
• Integrated Single Board Computer (SBC) with embedded Windows, dedicated TRD software and a high-resolution 7" color touch display for standalone operation
• Interfaces and analog outputs for connectivity to peripheral devices and easy export of measurement data
• Designed for use in fire testing setups and for optical measurements in exhaust duct installations

Available versions

• TRDA — light source: 10 W halogen point light emitter (RDG)
• TRDL — light source: helium-neon laser (HeNe)
• TRD_LED — LED light source (for measurements according to ISO/TS 19850)

Main components and accessories

• TRD measuring unit with SBC, 32 GB SSD, embedded Windows, 7" color touch display, measuring and supply modules
• Interfaces: 1x RS232, 2x USB 2.0, 1x RS485; analog outputs: 0–1 V and 0–10 V
• RDG light emitter (TRDA) with tempered heatproof optics or corresponding emitter for other versions
• LRDE light receiver with silicon photo receiver, spectral filter and integrated amplifier
• Robust transmitter and receiver electronics with signal transmission up to 10 m
• Optional mounting flange, measurement bracket for pipe installation and calibration filter set (6 optical filters) with transport case
• Single license for TRD software (on-board and/or external PC operation)

Operation & data handling

• Operator guidance and results display via 7" high-resolution color touch display with intuitive icons
• On-board data storage (32 GB SSD) and USB/RS232 interfaces for external data transfer
• Analog outputs and digital interfaces for integration into test rigs and acquisition systems
• Controller firmware upgradeable to ensure future enhancements

Standards & application

• Intended for optical density and transmission measurements during thermal decomposition of materials
• Referenced standards: DIN 50055, ISO 3182 and ISO/TS 19850
• Optional accessories enable adaptation to a variety of exhaust duct systems and simplify calibration, operation and cleaning

Technical specifications

• Model: TRD 908
• Single Board Computer (SBC) with embedded Windows; firmware upgradeable
• On-board storage: 32 GB SSD
• User interface: 7" high-resolution color touch display
• Interfaces: 1x RS232, 2x USB 2.0, 1x RS485
• Analog outputs: 0–1 V and 0–10 V
• Light measurement: RDG emitter (TRDA: 10 W halogen) and LRDE receiver (silicon photo receiver, spectral filter, integrated amplifier)
• Signal transmission possible up to 10 m; linear amplifier for light signal; DIN connectors for emitter and receiver
• Operation modes: transmission and/or optical density display; data export via USB/RS232
