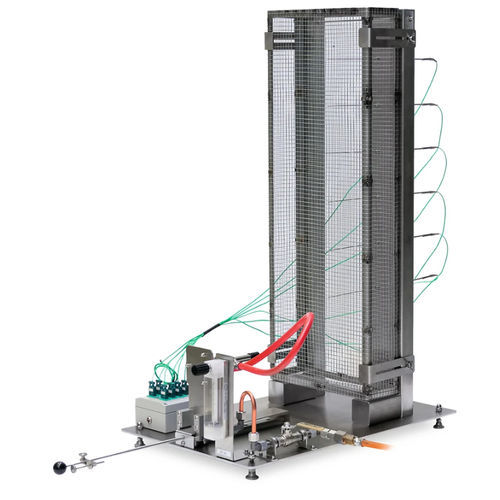

Flow testing device TSP 905

fire reactionautomaticvalve

Reaction to fire tests for building products - Determination of a building product's propensity to undergo continuous smouldering Measuring method according to DIN EN 16733:2016 Robust sample holder with carrier plate for thermocouples for easier assembly Main gas supply valve mounted on the front for easy accessibility Flow meter with flow indicator mounted on the front for easy accessibility Shifter for burner with cover against pollution Measurement data acquisition for up to 8 thermocouples USB interface for power supply and data transfer to (optional) notebook Own software for data acquisition, evaluation and logging Test device and accessories made of stainless steel to ensure a long life Accessories for standard tests included in delivery (Options according to technical specification) Specifications Measurement method - Determining a building product's propensity to undergo continuous smoldering in accordance with DIN EN 16733:2016 Sample holder - Frame, stainless steel (H x W): 850 mm x 300 mm 4 clamp holders for sample, stainless steel 2 pads: 50 mm x 50 mm x 100 mm Support plate for 6 thermocouples Burner - Horizontally arranged Teclu burner Linear profile rail guide with adjustable stop and protective cover Flow meter with regulator
