TSK 906 — Smoldering / single-cable test device (vertical flame spread)

Product overview

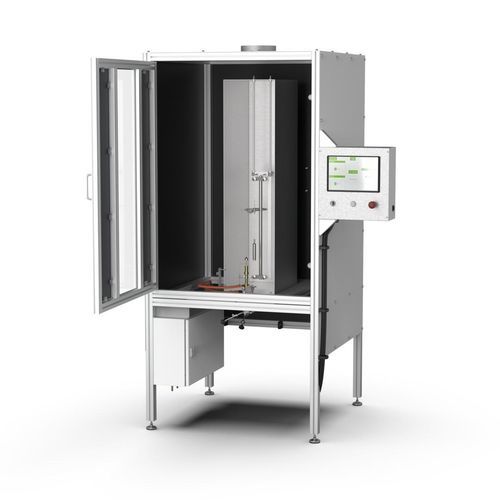

The TSK 906 is a laboratory test device designed to assess vertical flame spread and falling burning parts/drops from a single insulated conductor, wire or cable using a reproducible 1 kW propane/air flame in accordance with EN 60332‑1‑2 and the EN 60332 series. The unit features a stainless-steel protective housing, precise gas supply with mass flow controllers and a touch display with software-assisted burner calibration to ensure repeatable 1 kW flame conditions.

Overview of functions

• Protective housing to contain the test area
• Stainless-steel construction compliant with EN 60332‑1
• Housing dimensions (H x W x D): 1200 x 300 x 450 mm
• 1 kW propane burner in accordance with EN 60695‑11‑2
• Burner adjustable vertically and tilted at 45° to the vertical axis
• Gas control system with valves and mass flow controllers for propane and air
• Touch display for burner control and calibration
• Software-supported calibration routine for the 1 kW flame
• Calibration accessory: thermocouple with copper block (10 g)
• Sample holders for test and calibration according to EN 60332‑1‑2
• Burner gauge compliant with EN 60332‑1‑2
• Manual supplied on USB stick

Specification summary (table)
Test procedure: Vertical flame spread test for single insulated conductors/wires/cables and evaluation of falling burning drops/parts according to EN 60332‑1 series.
Equipment overall dimensions: H 2150 mm x W 1390 mm x D 1075 mm.
Weight: 165 kg.
Operating voltage: 100–230 VAC, 50 Hz.
Exhaust connection: Ø 200 mm.
Chamber volume: 1.3 m³; metal shield volume: 0.16 m³.
Gas system: Mass Flow Controller for propane — propane supply (purity ≥ 98%), flow range 0.016–0.8 nl/min C3H8 at 20 °C. Mass Flow Controller for air — air supply, flow range 0.24–12 nl/min AIR at 20 °C.
Calibration device: Copper calibration block Ø 9 mm, weight 10 ±0.05 g, material CU‑ETP C11000; Type K thermocouple with sheath rated ≥ 1250 °C, class 1 accuracy.
Delivered accessories: 1x TSK 906 test equipment (EN 60332‑1), 1x touch display, 1x calibration device (thermocouple + copper block), 1x sample holder (EN 60332‑1‑2), 1x sample holder for calibration, 1x burner gauge (EN 60332‑1‑2), 1x manual (USB).

Applications
The TSK 906 is intended for test laboratories, quality control and certification bodies performing standardized vertical flame propagation and smoldering tests on single conductors, insulated wires and cables. It is suitable for R&D, compliance testing and routine production checks where EN 60332 conformity and evaluation of falling burning parts are required.

Technical characteristics

• Product type: Smoldering / single-cable test device (vertical flame spread)
• Standards: EN 60332 series (including EN 60332‑1‑2); burner per EN 60695‑11‑2
• Housing: Stainless steel protective housing (H x W x D: 1200 x 300 x 450 mm)
• Overall dimensions: H 2150 mm x W 1390 mm x D 1075 mm
• Weight: 165 kg
• Power supply: 100–230 VAC, 50 Hz
• Exhaust connection: Ø 200 mm
• Chamber volume: 1.3 m³; metal shield volume: 0.16 m³
• Burner: 1 kW propane burner; adjustable vertically and at 45°
• Gas handling: Mass flow controllers for propane and air; propane purity ≥ 98%
• Propane flow: 0.016–0.8 nl/min (C3H8) at 20 °C
• Air flow: 0.24–12 nl/min (AIR) at 20 °C
• Calibration accessory: Copper block Ø 9 mm, 10 ±0.05 g, CU‑ETP C11000; Type K thermocouple
• Thermocouple: Type K, sheath ≥ 1250 °C, class 1
• Control & calibration: Touch display with software-supported burner calibration
• Delivered accessories: sample holders (test & calibration), burner gauge, calibration device, manual (USB)
