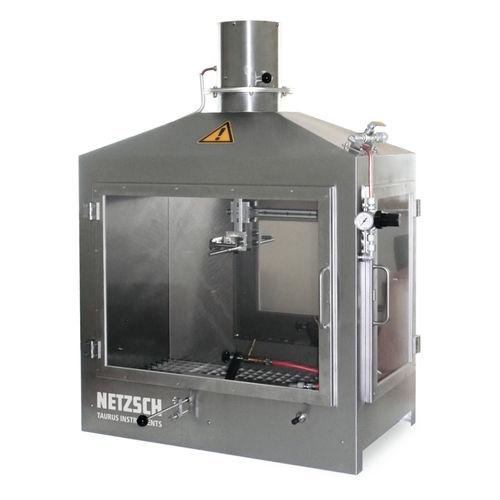

Flammability test chamber KBK 917

climatictemperaturegas

Fire Testing System for determining the ignitability of building products subjected to direct impingement of flame – part 2: single-flame source test in accordance with DIN EN ISO 11925-2 for classification into Euroclasses B, C, D and E Well thought-out details along with the use of high-quality materials guarantee the KBK 917 small burner box a long product life while reducing the need for cleaning and maintenance, increasing safety and greatly simplifying day-to-day work at the laboratory. Burner box with exhaust hood and stainless steel grid for long life and maintenancefree use of the device Furnace made of stainless steel for resistance to corrosive gases and long life Fire-resistant glass doors with locks for smooth opening on the front and on the right-hand side of the device Main gas supply valve mounted on the front for easy accessibility Gas pressure adjuster with pressure indicator mounted on the front for easy accessibility Fine control valve for the burner flame mounted on the front for easy accessibility Shifter for burner with cover to prevent pollution Metal mirror on the back wall of the device to monitor the back of the sample Sample holder horizontally and vertically adjustable Sample holder for vertical orientation, additional sample holders optionally available Integrated exhaust air fan with adjuster for setting precise exhaust air speed Gauges for flame height, edge and surface exposure Digital anemometer for controlling the exhaust air flow speed Digital stop watch for recording time as per standard specifications Metal template for sample preparation Filter paper tray with filter paper for collecting flaming droplets/particles
