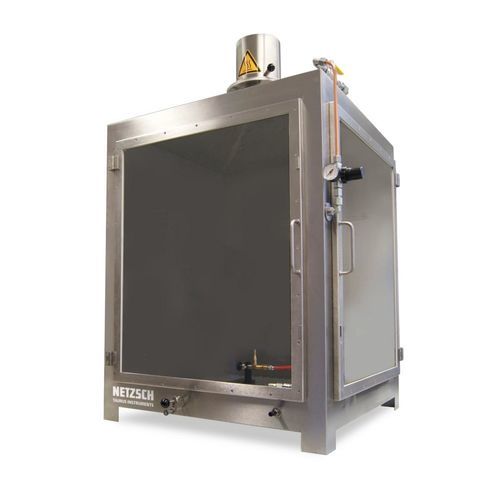

Gas test chamber SBK 902

flammabilityEuropean standards-compliant

Product overview
Burner box for toys. SBK 902 is a burner box designed to determine the reaction to fire of beards, mustaches, wigs and hairlike material in accordance with the toy flammability testing standard. The device is supplied as a complete burner box test unit ready for testing procedures related to toy flammability.

Standards & Application
Designed for toy flammability testing in accordance with DIN EN 71-2. Intended use: determination of reaction to fire of beards, mustaches, wigs and hairlike material (toy flammability tests).

Scope of delivery

• 1 Burner Box
• 1 Burner
• 1 Sample holder according to 5.4
• 1 Sample holder with double socket
• 1 Tripod clamp
• 1 template 310 x 100 mm
• 1 template 610 x 100 mm
• 1 Gauge for flame height (20 mm)
• 1 Gauge for flame height (40 mm)
• 1 Distance gauge 5 mm
• 1 Distance gauge 10 mm
• 1 Distance gauge 30 mm
• 2 m Gas connection hose
• 1 Digital stopwatch
• 1 English manual

Notes
Burner box is supplied with gauges and templates needed for standardized positioning and flame height measurement. Gas connection hose (2 m) and digital stopwatch are included. English language manual is provided.

Caractéristiques / spécifications techniques

• Model: SBK 902
• Commercial denomination: SBK 902
• Product type: Burner Box for Toys (toy flammability tester)
• Standards: DIN EN 71-2 (toy flammability testing)
• Intended test specimens: beards, mustaches, wigs and hairlike material
• Scope of delivery includes: burner box, burner, sample holders (incl. double socket), tripod clamp, templates 310 x 100 mm and 610 x 100 mm, flame height gauges (20 mm and 40 mm), distance gauges (5 mm, 10 mm, 30 mm), 2 m gas connection hose, digital stopwatch, English manual
• Delivered accessories for measurement control: flame height gauges and distance gauges for standardized positioning
