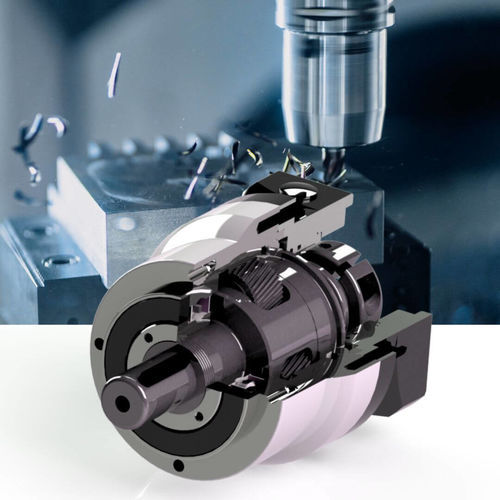

Planetary servo-gearbox AE70helicalcoaxialsolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 50 - 100 Nm, 20 - 50 Nm
- Number of stages
- single-stage, two-stage, three-stage
- Performance
- high-precision, low-backlash, high-performance, maintenance-free, high-torque, high-rigidity, low-noise, high-efficiency, high-speed, high load capacity
- Applications
- for servo motors, transmission, machine, for pharmaceutical products, for stepper motors, for machines, packaging machine, for industrial applications, for conveyors, shaft, for marine applications, for agricultural machinery, for vehicles, for automation, for rack-and-pinion drives
- Other characteristics
- combined, compact, flange, miniature, high-quality, industrial, for robotics, rugged, modular, double, for machine tools, vertical output shaft, custom, IP65, cutting, for DC motors
- Backlash
Min.: 0.05 °
Max.: 0.15 °
- Gear ratio
Min.: 3 unit
Max.: 320 unit
Description
AE Series is the ideal combination of precision planetary gearbox and efficient bearing technology. It has been developed specifically for delivering the maximum performance at high speeds. Its helical teeth provide homogeneous synchronism and quiet running noise.
Quiet and powerful
high output torque
permanent lubrication
Helical gear
High percision
Frame Size - 50mm, 70mm, 90mm, 120mm, 155mm, 205mm, 235mm
Output Torque - 14Nm-2567Nm
Ratio 1 stage - 3,4,5,6,7,8,9,10
Ratio 2 stage - 12,15,16,20,25,28,30,35,40,45,50
Ratio 3 stage - 48,60,75,80,100,120,125,180,200,256,320,512
Backlash 1 stage - P0<2 arc-min P1<3arc-min P2<5 arc-min
Backlash 2 stage - P0<3 arc-min P1<5 arc-min P2<7 arc-min
Backlash 3 stage - P0<5 arc-min P1<7 arc-min P2<9 arc-min
