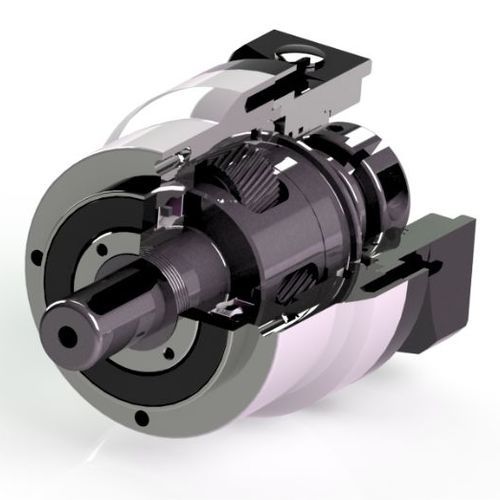

Planetary gearhead AE50helicalcoaxialsolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 10 - 20 Nm, 20 - 50 Nm
- Number of stages
- single-stage, three-stage, two-stage
- Performance
- low-noise, high-efficiency, precision, low-backlash, high-torque, high-performance, high-speed, high-capacity, maintenance-free
- Applications
- for industrial applications, for automation, for robots, for DC motors, for stepper motors, for medical devices, for servo motors, for actuators, for heavy-duty applications, for material handling equipment, for tools, for AGV, for printing machines, for shafts, for winders, for milling applications
- Other characteristics
- stainless steel, compact, miniature, for robotics, with flange, motor, IP65, NEMA 17, custom, for power tools, low-speed, aluminum, micro, NEMA 23, modular, industrial, mechanical transmission, for continuous operation, rack-and-pinion, for packaging, flange
- Backlash
Max.: 0.15 °
Min.: 0.05 °
- Gear ratio
Max.: 320 unit
Min.: 3 unit
Description
AE Precision Inline Planetary Gearboxes are built with precision helical gears. The gears shape optimized by 3D Simulation technology. Single piece structured ring gear to minimize the assembling error accumulation. Whole piece planetary carrier with bearings supported on each end taken large radial load capacity. They are best choice for the precision positioning applications as well as smooth running required.
Catalogs
No catalogs are available for this product.
See all of Newstart Planetary Gear Boxes Co.,Ltd.‘s catalogsOther Newstart Planetary Gear Boxes Co.,Ltd. products

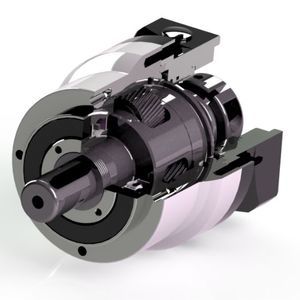

AE/AER Series Planetary Gearbox
