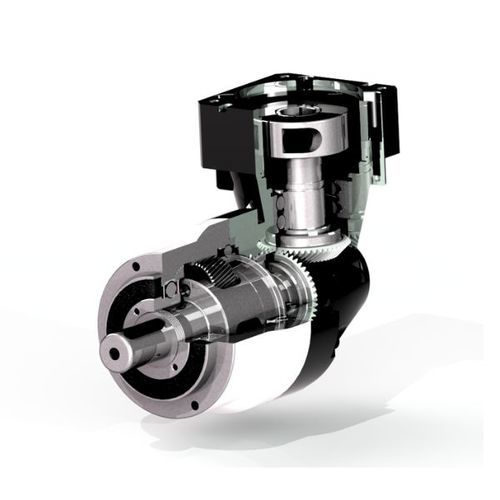

Right angle servo-gearbox AER155spiral bevelhelicalsolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- spiral bevel, helical
- Shaft orientation
- right angle
- Shaft configuration
- solid-shaft
- Torque
- 200 - 500 Nm, 500 - 1000 Nm
- Number of stages
- single-stage, two-stage, three-stage
- Performance
- precision, low-backlash, high-performance, maintenance-free, high-torque, high-rigidity, low-noise, high-efficiency, high-speed, high load capacity
- Applications
- for vehicles, for servo motors, transmission, machine, for machines, for industrial applications, for stepper motors, for conveyors, for agricultural machinery, for marine applications, for shaft, for automation, for rack-and-pinion drives, for pharmaceutical products
- Other characteristics
- high-quality, compact, flange, industrial, vertical output shaft, combined, for robotics, for DC motors, rugged, IP65, modular, for machine tools, custom, cutting
- Backlash
Max.: 0.21 °
Min.: 0.11 °
- Gear ratio
Max.: 320 unit
Min.: 3 unit
Description
AER series Precision Right Angle Gearboxes are built with precision helical gears. The gears shape optimized by 3D Simulation technology. Single piece structured ring gear to minimize the assembling error accumulation. Whole piece planetary carrier with bearings supported on each end taken large radial load capacity. They are best choice for the precision positioning applications as well as smooth running required.
