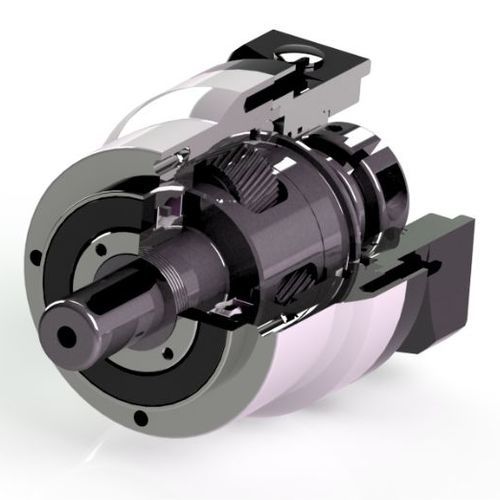

Planetary gearbox AE120helicalcoaxialsolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 200 - 500 Nm
- Number of stages
- single-stage, two-stage, three-stage
- Performance
- low-backlash, high-precision, high-efficiency, low-noise, high-performance, high-torque, maintenance-free, high-capacity, high-speed, high-rigidity, high-power, for heavy loads
- Applications
- transmission, for machinery, drive, for robots, for industrial applications, for AGV, for electrical drives, for the metallurgical industry, for the paper industry, for lathes, shaft, wheel, for automobiles, for hoist units, for DC motors, for stepper motors, for vehicles, for the petrochemical industry, for material handling equipment, for tools, for automation, for machines, for slewing drive, for screw jack, for mining equipment, for textiles, building, for servo motors, centrifuge, for milling applications, for railway applications, for mining applications, machine, for the chemical industry, for medical devices, for marine applications, axle, for roller mills, for lifting applications, powder
- Other characteristics
- for machine tools, compact, flange, for tire manufacturing, for packaging machines, for the cement industry, for robotics, stainless steel, modular, industrial, powder, high-quality, aluminum, for the sugar industry, large, foot-mounted, for automotive applications, with motor adapter, motor, for grinding machines, horizontal, for mixers, for loaders, manual, mounted, food, mechanical transmission, IP65, custom, for continuous operation, universal, shaft-mounted, for food packaging, for heavy loads, for injection molding machines, cutting
- Backlash
Max.: 0.15 °
Min.: 0.05 °
- Gear ratio
Max.: 320 unit
Min.: 3 unit
Description
AE Series is the ideal combination of precision planetary gearbox and efficient bearing technology. It has been developed specifically for delivering the maximum performance at high speeds. Its helical teeth provide homogeneous synchronism and quiet running noise.
Quiet and powerful
high output torque
permanent lubrication
Helical gear
High percision
Frame Size - 50mm, 70mm, 90mm, 120mm, 155mm, 205mm, 235mm
Output Torque - 14Nm-2567Nm
Ratio 1 stage - 3,4,5,6,7,8,9,10
Ratio 2 stage - 12,15,16,20,25,28,30,35,40,45,50
Ratio 3 stage - 48,60,75,80,100,120,125,180,200,256,320,512
Backlash 1 stage - P0<2 arc-min P1<3arc-min P2<5 arc-min
Backlash 2 stage - P0<3 arc-min P1<5 arc-min P2<7 arc-min
Backlash 3 stage - P0<5 arc-min P1<7 arc-min P2<9 arc-min
Catalogs
No catalogs are available for this product.
See all of Newstart Planetary Gear Boxes Co.,Ltd.‘s catalogsOther Newstart Planetary Gear Boxes Co.,Ltd. products
AE/AER Series Planetary Gearbox
