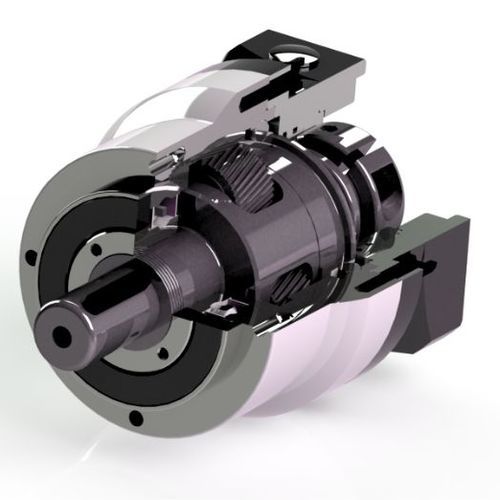

Planetary servo-gearbox AE155helicalcoaxialsolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 200 - 500 Nm, 500 - 1000 Nm
- Number of stages
- single-stage, two-stage, three-stage
- Performance
- precision, low-backlash, high-performance, maintenance-free, high-torque, high-rigidity, low-noise, high-efficiency, high-speed, high load capacity
- Applications
- machine, for servo motors, transmission, for agricultural machinery, for machines, for industrial applications, for conveyors, for marine applications, for vehicles, for automation, for pharmaceutical products, for stepper motors, shaft
- Other characteristics
- high-quality, compact, vertical output shaft, flange, industrial, combined, for robotics, rugged, IP65, double, modular, for machine tools, for DC motors, custom, cutting
- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 4,000 rpm
(25,132.74 rad.min-1)2,000 rpm
(12,566.37 rad.min-1)- Backlash
Min.: 0.05 °
Max.: 0.15 °
0.05 °
- Gear ratio
Min.: 3 unit
Max.: 320 unit
8 unit
Description
AE Precision Inline Planetary Gearboxes are built with precision helical gears. The gears shape optimized by 3D Simulation technology. Single piece structured ring gear to minimize the assembling error accumulation. Whole piece planetary carrier with bearings supported on each end taken large radial load capacity. They are best choice for the precision positioning applications as well as smooth running required.
