Disc clutch 4H series
pneumaticflange-mounted

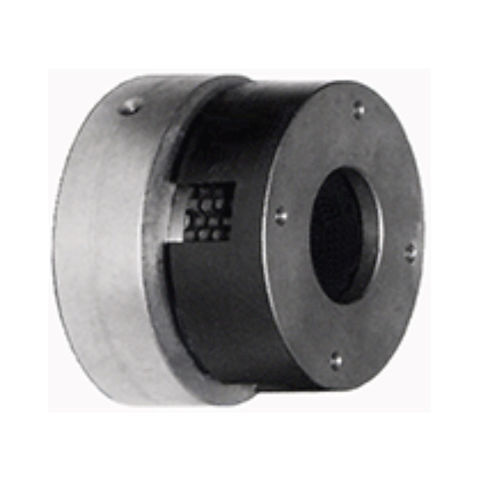

Disc clutch - 4H series - Nexen Group, Inc. - pneumatic / flange-mounted
Disc clutch - 4H series - Nexen Group, Inc. - pneumatic / flange-mounted
Disc clutch - 4H series - Nexen Group, Inc. - pneumatic / flange-mounted - image - 2
Add to favorites
Compare this product

Characteristics

Type
disc
Operation
pneumatic
Other characteristics
flange-mounted
Torque

Max.: 1,130 Nm
(833.445229 ft.lb)

Min.: 0 Nm
(0 ft.lb)

Rotational speed

Max.: 3,600 rpm
(22,619.4671 rad.min-1)

Min.: 700 rpm
(4,398.2297 rad.min-1)

Power

210 W

Description

Nexen’s single-disc, self-adjusting Clutches mount on a driving or driven shaft. They cover transmitted horsepower ratings from fractional to 25 hp, torque ratings to 5000 in-lb with thermal capacities to 2.5 thermal horsepower, and maximum operating speeds to 3600 rpm. Most are available in Sheave, Pilot, or Coupling Mount versions. Nexen's friction clutches address these product functions: Controlled Acceleration Inching/Jogging Rapid Cycling/Indexing Positioning Reversing/Multiple Speed Tension Control Overload Protection Disconnect Torque Limiting
