Drum brake

mechanicaltension control

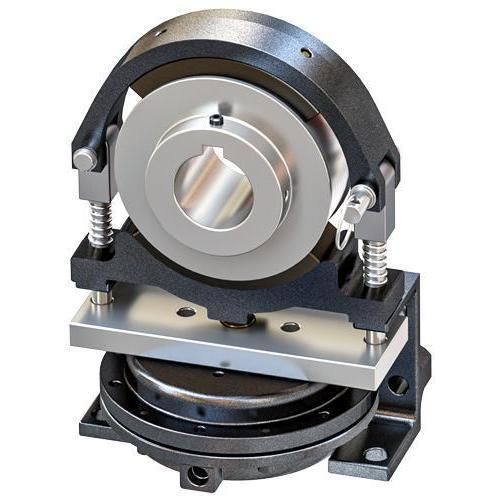

About Drum Brakes Nexen Group offers a range of industrial drum brakes designed for tension control, holding and continuous braking applications. These brakes are air-actuated with a diaphragm-sealed actuator that forces brake shoes onto a drum surface to generate braking torque. Brake units and drum hubs are ordered separately; hubs are available with keyed through bores or blank bores for customer finishing. Hinge-top models allow faster drum removal for roll changes.

Key Applications

• Controlled deceleration
• Tension control
• Stopping / holding
• Continuous braking

Required Components & Accessories

• Drum hubs (keyed or blank bores)
• 3-way control valves
• Flow control valves
• Control kits and mounting brackets
• Quick-exhaust / shuttle valves
• Restrictor valves, filters and regulators
• Lubricators and mufflers

Technical features / specifications

• Example model: 12K Drum Brake
• Torque: Up to 423.7 Nm [3,750 in-lb]
• Engagement method: Air-engaged (diaphragm-sealed actuator)
• Braking capabilities: Holding, emergency stop, cyclic dynamic, continuous slip
• Continuous thermal rating: Up to 2.2 kW [3.0 hp]
• Mounting: Foot mounting brackets may be included (product dependent)
• Hinge top: Fixed or hinge-top variants; hinge-top allows faster drum removal
• Hub: Shaft-mount drum with keyed through bore; blank bore hubs also available
• Available hub bore diameters: Up to 95.00 mm [3.750 in]
• Max speed: Hubs rated up to 5,500 RPM
• Finish: Black oxide or nickel plated
