- Ningbo SUPU Electronics Co., Ltd.

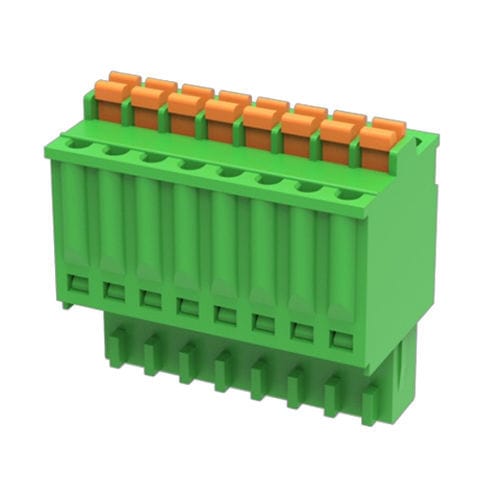

PCB terminal block MC-RJ2.5HXXP-0001plug-inspringpush-in
Add to favorites
Compare this product
Characteristics
- Mounting
- plug-in, for PCB
- Connection
- push-in, spring
- Other characteristics
- plastic, IEC, gray, copper
- Number of poles
- 3-pole, 2-pole, 4-pole, 6-pole, 5-pole, 8-pole, 12-pole, 10-pole, 9-pole, 7-pole, 24-pole
- Cross-section
Max.: 0.5 mm²
(0 in²)Min.: 0.2 mm²
(0 in²)- Current
4 A
- Nominal voltage
160 V
Description
Pitch:2.5mm Rated Voltage：160V Rated Current:4A Connection method：Push-in spring connection colour：customizable
Parameters
Pitch
2.5
Number of connections
XX
Connection method
Push in spring connection
Protection Level
IP20
Operating temperature range
-40~+105℃
Insulation material
PA66
Insulation material group
Ⅰ
Contact material
Copper alloy
Contact plating
Sn,Plated
Color
Green/Black/Blue/Grey/Orange/Red
Technical data
Overvoltage category
Ⅲ/Ⅲ/Ⅱ
Degree of pollution
3 2 2
Rated impulse voltage
1.5KV 2.5KV2.5KV
UL Rated Voltage
125V – –
Locking screw Specification
–
Locking screw torque
–
Fixed Screw Specification
–
Stripping length
7-8mm
Use group
B/C/D
