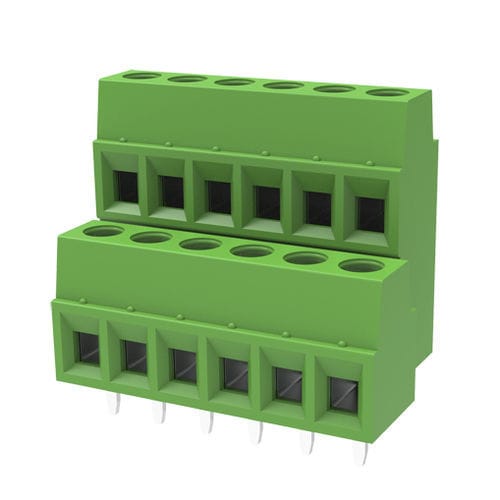

PCB terminal block MC-DTEH3.81HXXC-0001screw connectionplasticIEC
Add to favorites
Compare this product
Characteristics
- Mounting
- for PCB
- Connection
- screw connection
- Other characteristics
- plastic, IEC
- Number of poles
- multipole
- Cross-section
Max.: 1.5 mm²
(0 in²)Min.: 0.2 mm²
(0 in²)- Current
12 A
- Nominal voltage
160 V
Description
Pitch:3.81mm Rated Voltage：160V Rated Current:12A Connection method：Screw connection colour：customizable
Parameters
Pitch
3.81
Number of levels
Multi-Layer
Number of connections
XX
Connection method
Screw connection
Protection Level
IP20
Operating temperature range
-40~+105℃
Insulation material
PA66
Insulation material group
Ⅰ
Contact material
Copper alloy
Contact plating
Sn,Plated
Color
Green/Black/Blue/Grey/Orange/Red
Technical data
Overvoltage category
Ⅲ/Ⅲ/Ⅱ
Degree of pollution
3 2 2
Rated impulse voltage
2.5KV 2.5KV 2.5KV
UL Rated Current
12A – 10A
UL Rated Voltage
300V – 300V
Locking screw Specification
M2
Locking screw torque
0.2N.m
Fixed Screw Specification
–
Stripping length
5-6mm
