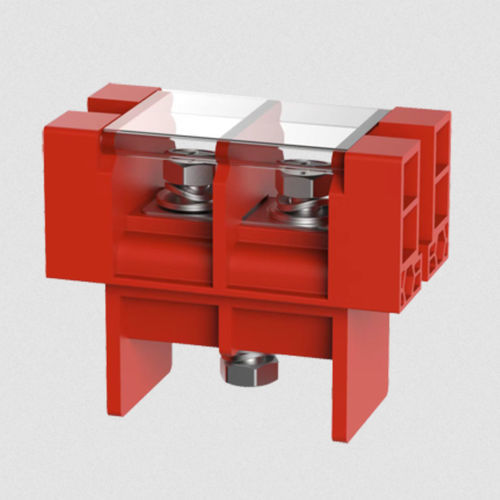

PCB terminal block TB-K-27.0V02C-RD-002screw connectioncopperIEC
Add to favorites
Compare this product
Characteristics
- Mounting
- for PCB
- Connection
- screw connection
- Other characteristics
- IEC, copper
- Current
180 A
- Nominal voltage
600 V
Description
pitch：27.0mm,rated voltage UL600V, rated current UL180A, color: red, Rated cross section10-2/0AWG
Parameters
Pitch
27
Number of levels
single layer
Number of connections
2
Connection method
Screw connection
Protection Level
IP20
Operating temperature range
-30°C ~+120°C
Insulation material
PBT+GF
Insulation material group
Ⅲ
Contact material
Copper alloy
Contact plating
Sn plated
Technical data
IEC Rated Current
192/192/192
IEC Rated Voltage
1000/1000/1000
Overvoltage category
Ⅲ/Ⅲ/Ⅱ
Degree of pollution
3/2/2
Rated impulse voltage
/
Conductor cross section rigid
6-70
Stripping length
18-19
Tightening torque
49.56
Connection capacity AWG
10-2/0
UL Rated Current
180/180/5
UL Rated Current
600/600/600
