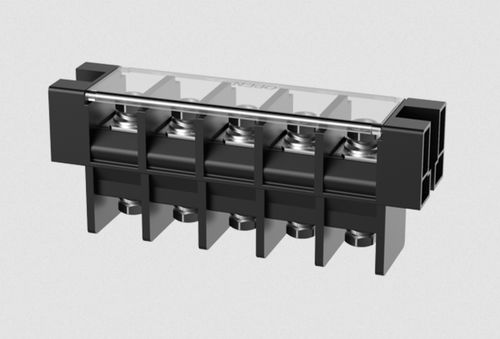

PCB terminal block TB-K-21.0VXXC-001screw connectioncopperIEC
Add to favorites
Compare this product
Characteristics
- Mounting
- for PCB
- Connection
- screw connection
- Other characteristics
- IEC, copper
- Number of poles
- 2-pole, 4-pole, 3-pole, 6-pole, 5-pole, 8-pole, 12-pole, 10-pole, 9-pole, 7-pole
- Current
100 A
- Nominal voltage
600 V
Description
pitch：21.0mm，rated voltage UL600V, rated current UL100A, color: black, Rated cross section10-2AWG
Parameters
Pitch
21.0
Number of levels
Single layer
Number of connections
XX
Connection method
Screw connection
Protection Level
IP20
Operating temperature range
-30°C ~+120°C
Insulation material
PBT+GF
Insulation material group
Ⅲ
Contact material
Copper alloy
Contact plating
Sn plated
Technical data
IEC Rated Current
100/100/100
IEC Rated Voltage
800/1000/1000
Overvoltage category
Ⅲ/Ⅲ/Ⅱ
Degree of pollution
3/2/2
Rated impulse voltage
/
Conductor cross section rigid
16-35
Stripping length
12-13
Tightening torque
44.27
Connection capacity AWG
10-2
UL Rated Current
100/100/5
UL Rated Current
600/600/600
