- Ningbo SUPU Electronics Co., Ltd.

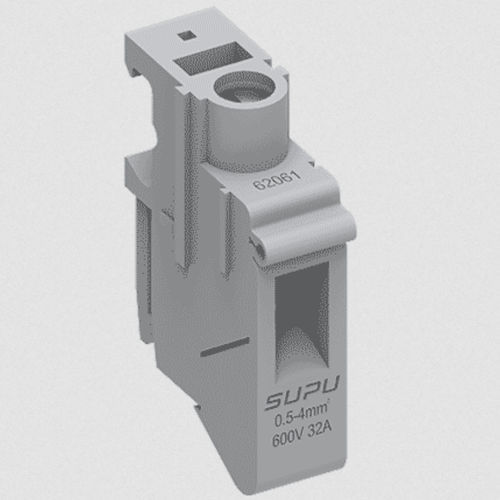

PCB terminal block 620611screw connectionfor transformerscopper
Add to favorites
Compare this product
Characteristics
- Mounting
- for PCB
- Connection
- screw connection
- Applications
- for transformers
- Other characteristics
- copper
- Cross-section
Max.: 4 mm²
(0.01 in²)Min.: 0.2 mm²
(0 in²)- Current
32 A
- Nominal voltage
600 V
Description
Rated Voltage：600V Rated Current:32A Connection method：Screw connection colour：grey
Parameters
Number of levels
single layer
Number of connections
1
Connection method
Screw connection
Protection Level
IP20
Operating temperature range
-40~+105℃
Insulation material
PA66
Insulation material group
Ⅰ
Contact material
Copper alloy
Contact plating
Tin
Color
Grey
Technical data
Overvoltage category
Ⅲ/Ⅲ/Ⅱ
Degree of pollution
3 2 2
Rated impulse voltage
3KV – –
UL Rated Current
20A 20A –
UL Rated Voltage
300V 300V –
Locking screw Specification
M3.5
Locking screw torque
0.6-0.8N.m
Fixed Screw Specification
–
Stripping length
8~9mm
Catalogs
Other Ningbo SUPU Electronics Co., Ltd. products

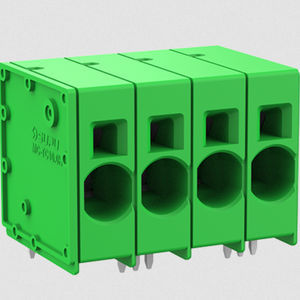

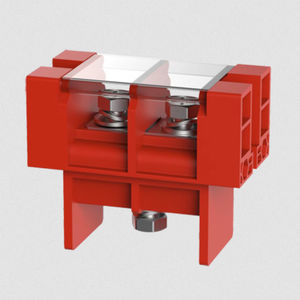

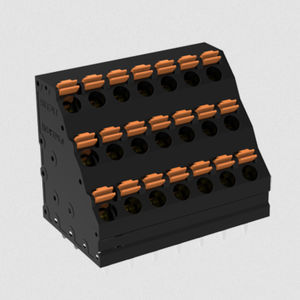

PCB terminals
