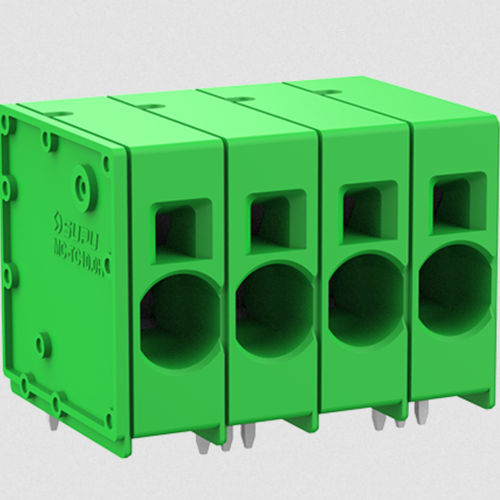

PCB terminal block MC-TC-B10.0HXXP-0001springpush-incopper
Add to favorites
Compare this product
Characteristics
- Mounting
- for PCB
- Connection
- push-in, spring
- Other characteristics
- copper
- Cross-section
Max.: 16 mm²
(0.02 in²)Min.: 0.75 mm²
(0 in²)- Current
76 A
- Nominal voltage
1,000 V
Description
Pitch:10.0mm Rated Voltage：1000V Rated Current:76A Connection method：Push in connection colour：customizable
Parameters
Pitch
10
Number of levels
Single layer
Number of connections
XX
Connection method
Push in spring connection
Operating temperature range
-40~+105℃
Insulation material
PA66
Insulation material group
Ⅰ
Contact material
Copper alloy
Contact plating
Sn,Plated
Color
Green/Black/Blue/Grey/Orange/Red
Technical data
Overvoltage category
Ⅲ/Ⅲ/Ⅱ
Degree of pollution
3 2 2
Rated impulse voltage
8.0KV 8.0KV 8.0KV
UL Rated Current
70A 70A 5A
UL Rated Voltage
600V 600V 600V
Locking screw Specification
–
Locking screw torque
–
Fixed Screw Specification
–
Stripping length
18-20mm
