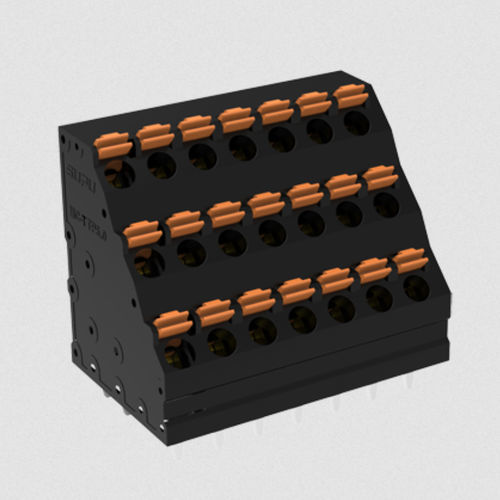

PCB terminal block MC-TTP5.0AXXP-BK-0001springpush-incopper
Add to favorites
Compare this product
Characteristics
- Mounting
- for PCB
- Connection
- push-in, spring
- Other characteristics
- copper
- Number of poles
- 2-pole, multipole, 4-pole, 3-pole, 32-pole, 6-pole, 5-pole, 8-pole, 12-pole, 10-pole, 9-pole, 7-pole, 24-pole
- Cross-section
Max.: 1.5 mm²
(0 in²)Min.: 0.2 mm²
(0 in²)- Current
17.5 A
- Nominal voltage
320 V
Description
Pitch:5mm Rated Voltage：320V Rated Current:17.5A Connection method：Push in connection colour：customizable
Parameters
Pitch
5
Number of levels
Multi-Layer
Number of connections
XX
Connection method
Push in spring connection
Protection Level
IP20
Operating temperature range
-40~+105℃
Insulation material
PA66
Insulation material group
Ⅰ
Contact material
Copper alloy
Contact plating
Sn,Plated
Color
Green/Black/Blue/Grey/Orange/Red
Technical data
Overvoltage category
Ⅲ/Ⅲ/Ⅱ
Degree of pollution
3 2 2
Rated impulse voltage
4.0KV 4.0KV 4.0KV
UL Rated Current
10A – 10A
UL Rated Voltage
300V – 300V
Locking screw Specification
–
Locking screw torque
–
Fixed Screw Specification
–
Stripping length
9-10mm
