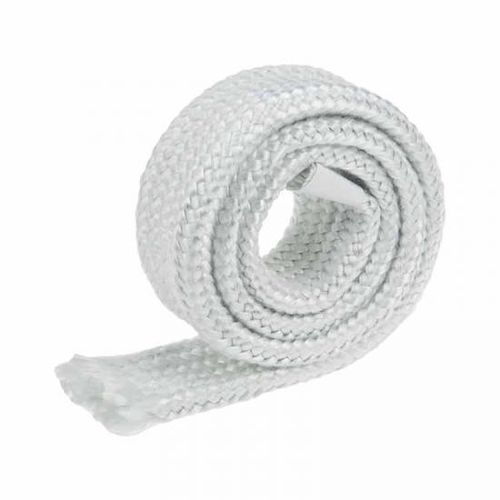

Fiberglass hose sleeve

hosewear-resistant

Product Overview
Discover reliable hose protection with this Fiberglass Braided Sleeve designed for industrial application. Engineered to resist mechanical abrasion and provide basic thermal shielding, the sleeve withstands temperatures up to 932°F / 500°C. Its braided, expandable construction conforms to irregular shapes and assemblies, suitable for straight runs and bends. Optional silicone rubber coating available for enhanced durability.

Order & Commercial Info
MOQ: 1 piece
Payment terms: EXW, FOB, CIF, DDP, FCA, etc.
Color: White
Shipping port: Shanghai, Ningbo

Engineering Purpose

• Protect hoses and cables from abrasion and chafing
• Reduce surface contact damage
• Provide basic resistance to radiant heat
• Extend service life of hose and cable assemblies

Material & Construction

• Manufactured from continuous fiberglass yarns (non-combustible)
• Braided structure allows controlled expansion and contraction
• Maintains structural integrity at elevated temperatures
• Does not melt or drip when exposed to heat

Thermal & Mechanical Performance

• Basic resistance to radiant heat; suitable for intermittent or moderate thermal exposure
• Excellent abrasion resistance against surrounding components and surfaces
• Permits airflow around protected hoses to help reduce heat buildup

Typical Applications

• Hydraulic and pneumatic hose protection
• Fuel and oil line protection
• Cable and wiring bundle protection
• Industrial machinery and equipment
• Automotive and off-road vehicle systems

Installation Guidelines

• Select sleeve diameter according to hose or cable outer diameter
• Cut sleeve to length using appropriate cutting tools
• Expand sleeve and slide it over the hose or assembly
• Secure sleeve ends with clamps, tape, or suitable termination methods

Limitations
Fiberglass braided sleeve provides abrasion resistance and basic thermal protection only. It is not designed for direct flame exposure, fluid fire containment, or as high-performance thermal insulation. For fire-risk or extreme-temperature applications, use specialized firesleeve products.

Available Options

• Supplied in continuous lengths or cut pieces
• Various diameters available to fit different hose sizes (0.4" to 6.0" ID typical)
• Optional silicone rubber coating for enhanced durability

RFQ / Required Information
To obtain accurate pricing and lead time, include:

• Inner diameter required
• Length per piece or total length
• Quantity required

Optional (Recommended) Information

• Operating temperature range
• Application environment
• Type of hose or cable being protected

Technical Documentation
Technical overview and product documentation are available (technical PDF available from manufacturer).

Features / Technical Specifications

• Maximum service temperature: up to 932°F / 500°C
• Material: continuous fiberglass yarns (non-combustible)
• Construction: braided sleeve (expanding, conformable)
• Does not melt or drip under heat
• Primary functions: abrasion resistance, basic radiant heat resistance, mechanical protection
• Not suitable for direct flame, fluid fire containment or high-intensity insulation
• Available sizes: 0.4" to 6.0" (inner diameters)
• Supply forms: continuous lengths or cut pieces
• Optional finish: silicone rubber coating
• Color: White
• Typical MOQ: 1 piece
