Not specified hose sleeve

hosewear-resistant

Product Description

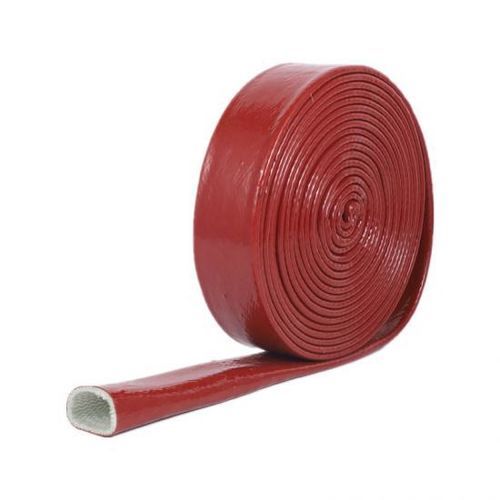

Hydraulic Hose Protection Fire Sleeve is a high-temperature, flame-resistant protective sleeve designed to protect hydraulic hoses from extreme heat, abrasion, molten splash and fire exposure. It helps extend hose service life and improve system safety in industrial, mining, construction and heavy-equipment hydraulic applications.

Product Overview
Hydraulic hoses are often routed near engines, exhaust components, furnaces or hot process equipment. In these conditions, unprotected hoses are vulnerable to thermal degradation, abrasion damage and sudden fire exposure. The Hydraulic Hose Protection Fire Sleeve acts as a passive protective barrier, reducing heat transfer to the hose surface while providing mechanical and chemical resistance to improve hose service life and system reliability.

Key Benefits

• High Temperature and Flame Protection: Designed to reduce radiant heat exposure and resist direct flame contact, helping protect hydraulic hoses in high-temperature operating zones.
• Molten Splash Resistance: Tested for resistance to molten metal splash, providing critical protection in foundry, steelmaking, welding and metallurgical environments.
• Abrasion and Mechanical Protection: Engineered to withstand continuous rubbing, vibration and contact with surrounding components, reducing external wear and surface damage.
• Oil and Chemical Resistance: Resists hydraulic oils, fuels and industrial fluids, maintaining performance in oil-rich environments without material degradation.
• OEM-Friendly and Customizable: Available in multiple diameters and lengths to suit different hose sizes, routing constraints and OEM system requirements.

Typical Applications

• Mining equipment and underground machinery
• Construction and earth-moving equipment
• Steel mills, foundries and metallurgical plants
• Industrial hydraulic power units and presses
• Agricultural and heavy machinery
• Rail and transit equipment requiring controlled fire performance

Certifications, Tests & Performance Validation
This product has been evaluated through a comprehensive set of internationally recognized fire, mechanical, chemical and thermal performance tests. It supports or complies with multiple standards and test methods.

• MSHA flame resistance requirements
• UL 1441 fire resistance testing
• RoHS and REACH compliance
• Railway-related compliance options available, including DIN EN 45545-2:2020 and associated low-smoke and toxicity options

Selected Performance Tests

• Molten Splash Test – BS EN 373 (resistance to molten metal droplets)
• Abrasion Resistance – BS EN 388 (durability under mechanical rubbing and vibration)
• Oil Resistance – BS EN ISO 6530 (resistance to hydraulic oils and industrial fluids)
• Tensile Strength – BS 2576 (structural integrity under mechanical stress)
• Thermal Conductivity – ASTM C177 (heat transfer performance and insulation efficiency)

How the Fire Sleeve Works
The fire sleeve forms a protective layer around the hydraulic hose, reducing direct exposure to external heat sources and physical damage. By lowering heat flux to the hose surface and shielding it from abrasion and molten splash, the sleeve helps preserve hose integrity and delays thermal aging of hose cover and reinforcement layers.

Failure Modes and Risk Control in Hydraulic Hose Systems

• Thermal degradation caused by continuous radiant heat or intermittent flame exposure
• Abrasion damage from vibration, oscillation and repeated contact with machine structures
• Molten metal splash or hot particle impact compromising the hose cover
• Oil and chemical exposure accelerating material aging
• Mechanical stress concentration at bends, clamps and tight routing points

Selection Guidance
When specifying a hydraulic hose fire sleeve, consider the following parameters:

• Hose outside diameter (OD)
• Maximum operating and peak temperatures
• Exposure type (radiant heat, flame, molten splash, abrasion)
• Routing conditions and installation constraints
• Required certifications or compliance standards

Manufacturing & Quality Assurance
This product is manufactured by Anhui Parker New Material Co., Ltd and produced under quality management systems including ISO 9001 and IATF 16949 to support consistent production and OEM supply programs.

Technical Documentation
The product is supported by dedicated technical documentation covering fire protection mechanisms, verified performance tests and hydraulic hose failure risk analysis.

Technical Characteristics / Specifications

• Commercial name (model): Hydraulic Hose Protection Fire Sleeve
• Manufacturer: Anhui Parker New Material Co., Ltd
• Order (MOQ): 1
• Primary protections: high temperature, direct flame, molten metal splash, abrasion, oil/chemical resistance
• Compliance & standards: MSHA, UL 1441, RoHS, REACH; railway compliance options such as DIN EN 45545-2 available
• Performance tests: BS EN 373 (molten splash), BS EN 388 (abrasion), BS EN ISO 6530 (oil resistance), BS 2576 (tensile), ASTM C177 (thermal conductivity)
• Customization: available in multiple diameters and lengths to suit hose sizes and OEM requirements
• Typical applications: mining, construction, steel mills/foundries, hydraulic power units, agricultural and heavy machinery, rail/transit
• EAN: not specified on the page
• Price: not specified on the page
