Wear-resistant hose sleeve

fiberglass

Product Name

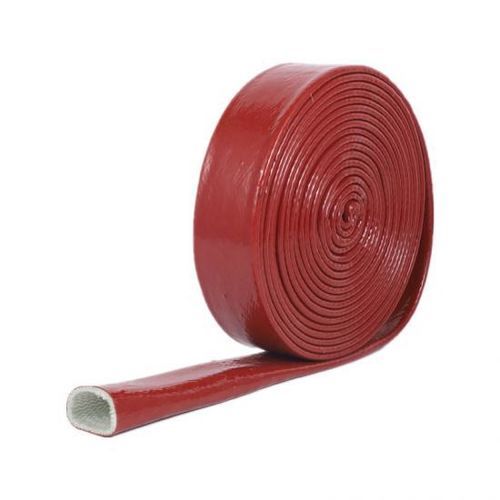

Hydraulic Hose Fire Sleeve by Anhui Parker New Material Co., Ltd — a high-temperature, flame and molten-splash protective sleeve engineered to protect hydraulic hoses from heat, abrasion and chemical exposure in industrial and heavy-equipment applications.

Product Overview
Hoses routed near engines, exhausts, furnaces or hot process equipment face accelerated ageing and sudden fire risk. This fire sleeve provides a passive barrier that reduces heat transfer, resists direct flame contact and shields hoses from molten splash and mechanical wear, improving operational safety and hose service life.

Key Benefits

• High-temperature and flame resistance: limits radiant heat transfer and withstands brief direct flame exposure.
• Molten-splash protection: tested for resistance to molten metal droplets and short-duration splash events.
• Abrasion and mechanical protection: resists continuous rubbing, vibration and contact with surrounding structures.
• Chemical and oil resistance: compatible with hydraulic oils, fuels and common industrial fluids.
• OEM-friendly sizing: available in multiple diameters and lengths; customizable to fit hose OD, fittings and routing constraints.

Typical Applications

• Mining equipment and underground machinery
• Construction and earth-moving equipment
• Steel mills, foundries and metallurgical plants
• Industrial hydraulic power units, presses and forming machines
• Agricultural and heavy machinery
• Rail and transit equipment with fire-safety requirements

Certifications, Tests & Performance Validation
The sleeve has been evaluated against recognized fire, mechanical and chemical test methods and supports compliance with common industrial standards and directives.

• MSHA flame resistance criteria
• UL 1441 fire resistance testing
• RoHS and REACH compliance

Performance Tests Completed

• Molten Splash Test – BS EN 373 (resistance to molten metal droplets)
• Abrasion Resistance – BS EN 388 (durability under mechanical rubbing)
• Oil Resistance – BS EN ISO 6530 (resistance to hydraulic oils and industrial fluids)
• Tensile Strength – BS 2576 (mechanical integrity)
• Thermal Conductivity – ASTM C177 (insulation and heat transfer)

Railway-related Compliance Options
DIN EN 45545-2:2020 testing and associated low-smoke/toxicity options are available for projects requiring enhanced rail fire performance.

How the Fire Sleeve Works
The sleeve creates a thermal and mechanical barrier around the hose, lowering heat flux to the hose cover, deflecting molten particles and reducing abrasive wear. This delays thermal aging of cover and reinforcement layers and preserves hose integrity under harsh exposures.

Failure Modes Addressed

• Thermal degradation from prolonged radiant heat or intermittent flame
• Abrasion damage due to vibration and contact with structures
• Damage from molten metal splash or hot particle impact
• Chemical and oil-induced material ageing
• Mechanical stress concentration at bends, clamps and tight routing points

Selection Guidance
When specifying a fire sleeve, consider:

• Hose outside diameter (OD) and fittings
• Maximum continuous and peak temperatures
• Exposure type: radiant heat, direct flame, molten splash or abrasion
• Routing, clamps and installation clearances
• Required certifications and project standards

Manufacturing & Quality Assurance
Manufactured by Anhui Parker New Material Co., Ltd under ISO 9001 and IATF 16949 quality systems. Production supports traceability, batch testing and OEM supply programs.

Frequently Asked Questions (summary)

• What does a hydraulic hose fire sleeve do? It protects hoses from heat, flame, molten splash, abrasion and chemical exposure, reducing failure risk and extending service life.
• When to use a fire sleeve vs. a standard abrasion sleeve? Use fire sleeves for high-temperature or fire-risk environments; abrasion sleeves are for low-heat mechanical wear protection.
• How to choose the correct size? Select by hose OD and allow clearance for bends, fittings and clamps.
• Is this product suitable for compliance-driven projects? Yes — it supports MSHA and UL 1441 testing, RoHS and REACH, plus additional BS/ASTM validations.

Technical Documentation
Detailed technical documentation is available covering fire protection mechanisms, verified test reports and hydraulic hose failure analysis. Contact the manufacturer for datasheets, test certificates and installation guidance.

Technical Specifications

• Product: Hydraulic Hose Fire Sleeve
• MOQ: 1
• Protection features: high-temperature resistance, flame resistance, molten-splash resistance, abrasion resistance, oil/chemical resistance
• Standards/Compliance: MSHA, UL 1441, RoHS, REACH; optional BS/ASTM/DIN standards
• Performance tests: BS EN 373, BS EN 388, BS EN ISO 6530, BS 2576, ASTM C177
• Options: multiple diameters and lengths; custom OEM configurations available
• Manufacturer: Anhui Parker New Material Co., Ltd
