machine tool vise / 5-axis / steel
41300

Add to MyDirectIndustry favorites
machine tool vise / 5-axis / steel machine tool vise / 5-axis / steel - 41300
{{requestButtons}}

Characteristics

  • Applications:

    for machine tools

  • Configuration:

    5-axis

  • Other characteristics:

    steel

  • Max. clamping force:

    52 kN

  • Stroke:

    Max.: 320 mm

    Min.: 20 mm

Description

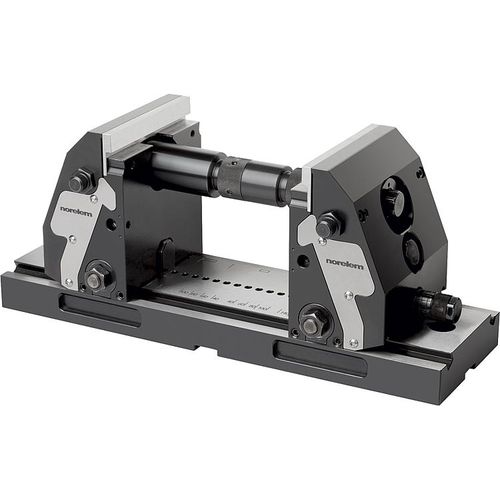

5-axis clamping system compact, jaw plate, smooth

Material:
Base plate and jaw hardened steel.
Vice jaws tool steel.

Version:
Jaws black oxidised.
Jaw plates bright.

Note:
The easy operability and rapid adjustment using a scale means that the clamping jaws can be quickly and surely adapted to new workpieces
The workpiece is always centred through the systematic construction of the 5-axis compact clamping system.
The optimal accessibility to the workpiece allows short, standard tooling to be used. Tooling costs are significantly reduced.

Positive down force by a clamping depth of >5 mm.
Clamping widths of 20 mm to 320 mm are possible.

Assembly:
The 5-axis clamping system compact can be mounted on T-slot tables, grid systems or, using an adapter flange on conventional zero-point clamping systems.

Accessory:
Seating ledge 41345
Jaw plates 41320
Pendulum jaws 41325
Centre jaws 41335
Coupling for cross-clamping 41365

Order the seating ledges and jaw plates with pins separately.
