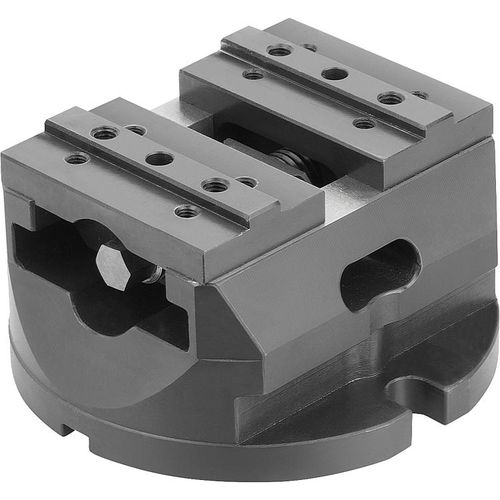

self-centering vise / machine / horizontal / precision
precision, steel, self-centering
Max. clamping force:
Max.: 14 kN
Min.: 0 kN
Centric clamp, jaw width 65 mm
Body and jaw holder mild steel.
Spindle high-strength special steel.
Body and jaw holder hardened and ground.
Note for ordering:
Supplied with hexagon crank handle.
Order jaw plates separately.
Mechanically operated centric vice.
Suitable for automation: prepared with gripper slot for handling systems.
Flexible mounting: suitable for zero-point systems, mounting on machine tables or on custom systems via a baseplate.
Centring precision: +/- 0.02 mm.
The use of a torque wrench is recommended to achieve a controlled clamping force.
- Clamping slide and spindle nut in one piece
- Slots and fastening threads for mounting attachment jaws
- Reversible jaws (accessories) with lateral thread for workpiece stop enables a wider clamping range
- Good swarf and coolant removal
