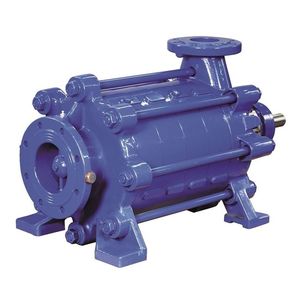

Water pump SKM MSMO

with electric motorself-primingcentrifugal

Multistage Multi Outlet Pumps are a design of pump which have a single inlet, but twin outlets delivering two discharge pressures simultaneously. They are utilized in high rise buildings as fire suppression pumps for four reasons: 1. They eliminate the requirement for water storage tanks at intermediate levels within a building. 2. Eliminate the requirement for pressure reducing valves meaning equipment is more efficient. 3. Over pressurisation of sprinkler heads is prevented. 4. Two duties from one pump saves on equipment cost as required duties can be achieved by a single model. Design Characteristics The SKM MSMO is capable of producing pressures up to 55bar and flows up to 1000M³H. Designed for Heavy Duty Applications the SKM MSMO is built to BB4 Standards meaning the unit is radially split, has a between bearing design, dual lifetime grease lubricated bearings and wear rings to ensure casing life is prolonged. This unit can also be utilized in other applications such as water transfer or irrigation where two duty points may be required. If connected to a Variable Speed Drive a multitude of duty points are achievable across both discharges. Materials can be specified to enable the handling of Seawater, Chemicals or Fuels. This model is also ATEX rated, making it suitable for installation in flammable atmospheres. Flanges can be rotated according to customers requirements with inlet / outlets rotated at 90° angles to match pipework. Product Summary ATEX Rated Heavy Duty Construction with Twin Lifetime Grease Lubricated Bearings Wear Ring Design ensures casing life is prolonged Independent Pump and Motor Shafts
