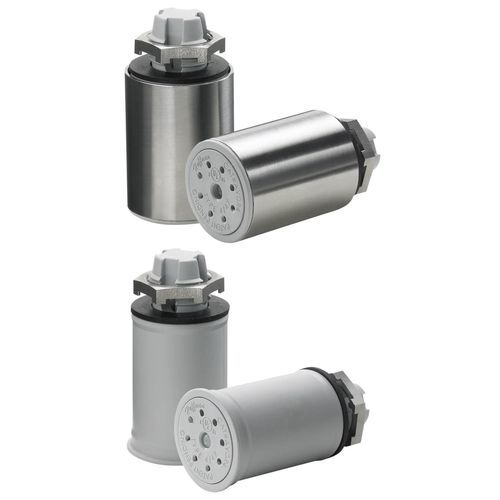

Air drain AVDR4NM

automaticelectronic

Product Overview
H2Omit Vent Drains allow accumulated water to drain from the bottom of an enclosure while providing air-pressure equalization. UL-approved, they reduce temperature-induced vacuum effects that can draw moisture into electrical or electronic enclosures.

Features

• Uses gravity to remove collected liquids
• One-way mechanical shut-off prevents ingress of water and contaminants once pressure is equalized
• Helps reduce corrosion on internal electrical and electronic components
• Installs in a 7/8-inch hole in the bottom of an enclosure with the provided nut or in a 1/2-inch NPT/NPS threaded conduit hub
• Suitable for mild steel, aluminum, stainless steel or non-metallic enclosures
• Maintains enclosure UL Type rating when properly installed

Industry Standards
UL 508A Listed; Type 4, 4X; File No. E61997
cUL Listed per CSA C22.2 No 94; Type 4, 4X; File No. E61997
Maintains UL/cUL Type 4, 4X rating when properly installed on a UL/cUL Type 4 or 4X enclosure.
NEMA/EEMAC Type 4, 4X
IEC 60529, IPx6

Product Attributes

• Catalog#: AVDR4NM
• Article Number: 17763
• Material: Corrosion-resistant polyester
• Finish: Smooth matte
• Color: Gray
• Diameter: 1.25 in (32 mm)
• Dimensions (H x W x D): 2.64 x 1.25 x 1.25 in (67 x 32 x 32 mm)
• Weight: 0.15 lb
• UPC: 783510177638
• EAN: 8713574237391
• Standard Packaging Quantity: 1

Technical specifications

• Model / Product Name: H2Omit Vent Drain
• Catalog Number: AVDR4NM
• Article Number: 17763
• Dimensions (H x W x D): 2.64 in x 1.25 in x 1.25 in (67 mm x 32 mm x 32 mm)
• Diameter: 1.25 in (32 mm)
• Material: Corrosion-resistant polyester
• Finish: Smooth matte
• Color: Gray
• Weight: 0.15 lb
• Installation: Installs in a 7/8-inch hole with provided nut or in a 1/2-inch NPT/NPS threaded conduit hub; suitable for mild steel, aluminum, stainless steel or non-metallic enclosures
• Standards: UL 508A; cUL per CSA C22.2 No 94; NEMA/EEMAC Type 4/4X; IEC 60529 IPx6
• UPC: 783510177638
• EAN: 8713574237391
