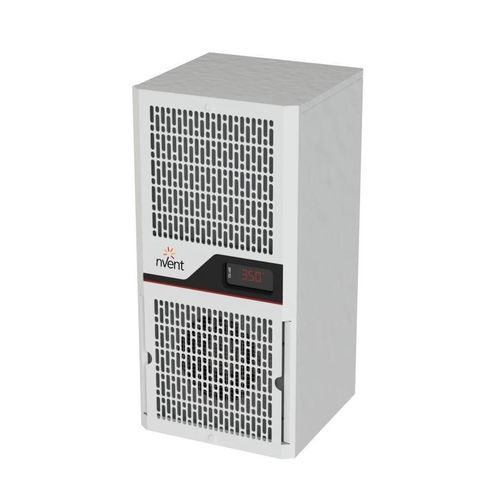

Side-mount electrical cabinet air conditioner GAC20 series

compactindustrialenergy-saving

Overview
The nVent Side-Mount Global Air Conditioner (GAC20N series) delivers 2,000 Btu/h (580 W) cooling for electrical enclosures and compact cabinets. Engineered for indoor ambient conditions from 50 to 131°F (10 to 55°C), it improves energy efficiency by approximately 30% compared with legacy models and integrates a new controller for enhanced cooling autonomy and simplified maintenance.

Key features

• 2,000 Btu/h (580 W) nominal cooling capacity for small enclosures
• Wide indoor operating range: 50°F to 131°F (10°C to 55°C) for reliable performance in extreme climates
• Available in mild steel or 316 stainless steel (model dependent) for corrosion resistance
• Uses R513A refrigerant to reduce environmental impact
• Compact footprint: 21.28 in × 10.3 in × 10.8 in (540 × 262 × 275 mm)

Available SKUs

• GAC20N15BG00000 — Article 64613: 2,000 Btu/h, 115 V, Mild Steel
• GAC20N15B600000 — Article 64617: 2,000 Btu/h, 115 V, Stainless Steel 316
• GAC20N23BG00000 — Article 64614: 2,000 Btu/h, 230 V, Mild Steel
• GAC20N23B600000 — Article 64618: 2,000 Btu/h, 230 V, Stainless Steel 316

Documents
Installation manual, quick start guide and product-specific declarations and certificates are available as PDF files on the product page.

Technical specifications

• Color: Light Gray (RAL 7035)
• Nominal capacity: 580 W (2,000 Btu/h)
• Operating temperature (indoor): 50 – 131°F (10 – 55°C)
• Nominal voltages: 115 V and 230 V; single-phase
• Refrigerant: R513A
• Materials: Mild Steel or Stainless Steel 316 (model dependent)
• Remote access control: No
• Dimensions (H×W×D): 21.28 in × 10.3 in × 10.8 in (540 × 262 × 275 mm)
• Cutout adapter options available to retrofit older nVent HOFFMAN or competitive units

Applications

• Cooling electrical and electronic enclosures
• Control cabinets in industrial automation and process equipment
• Enclosures operating in elevated ambient temperatures where compact, reliable cooling is required
