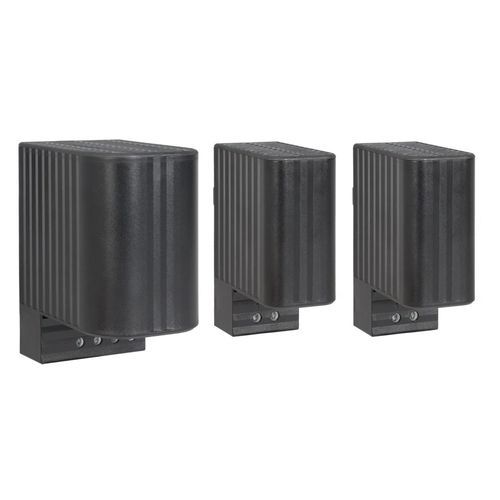

Electrical cabinet heater DAH series

convectionelectricfor enclosures

Overview
Enclosure heaters from the DAH series protect electronic and mechanical equipment against low temperatures, condensation and corrosion. These touch-safe heaters use a PTC heating element and natural convection to maintain a stable internal temperature within control enclosures.

Features

• PTC resistor heating element with built-in temperature limiting
• Double-insulated protection (no earth connection required)
• Mounting clip for 35 mm DIN rail (EN 60 715)
• Designed for vertical installation
• UL 94 V-0 rated plastic housing

Industry Standards

• cURus Component Recognized; File No. E150057
• Ingress protection: IP 20
• CE marked

Available SKUs (summary table)
Catalog Number | Article Number | Height | Width | Depth | Nominal Voltage | Heating Capacity | Voltage AC | Max Current
DAH101TS | 25923 | 3.9 in / 99 mm | 1.5 in / 38 mm | 3 in / 76 mm | 115 V | 10 W | 110 V | 2.5 A
DAH201TS | 25924 | 3.9 in / 99 mm | 1.5 in / 38 mm | 3 in / 76 mm | 115 V | 20 W | 110 V | 4.5 A
DAH501TS | 25925 | 4.3 in / 109 mm | 2.4 in / 61 mm | 3.5 in / 89 mm | 115 V | 50 W | 110 V | 8 A

Technical specifications

• Color: Black
• Material: Plastic
• Finish: Smooth matte
• Heating element: PTC resistor (self-limiting temperature)
• Protection: Double insulated
• Mounting: 35 mm DIN rail clip (EN 60 715); vertical mounting
• Housing: UL 94 V-0 plastic
• Ingress protection: IP 20
• Approvals: cURus Component Recognized (File No. E150057), CE
• Typical nominal voltage: 115 V
• Available heating capacities by SKU: DAH101TS = 10 W, DAH201TS = 20 W, DAH501TS = 50 W
• Typical supply (Voltage AC): 110 V
• Max current by SKU: DAH101TS = 2.5 A, DAH201TS = 4.5 A, DAH501TS = 8 A
• Representative dimensions by SKU (HxWxD): DAH101TS = 99 mm x 38 mm x 76 mm; DAH201TS = 99 mm x 38 mm x 76 mm; DAH501TS = 109 mm x 61 mm x 89 mm
