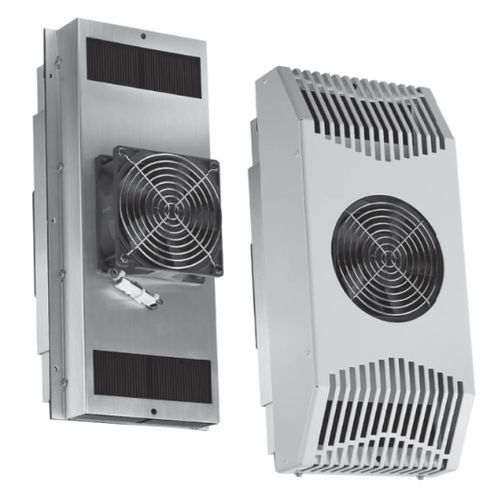

Air cooler TE series

for enclosure air conditioningfor electrical cabinetcompact

Overview
Thermoelectric enclosure coolers remove heat around critical components to minimize downtime and component failure in small indoor and outdoor enclosures. These low-profile units use the Peltier effect to provide cooling or heating without refrigerants, compressors or filters, making them suitable for low-maintenance, low-noise industrial applications. Designed for partial recess mounting and flexible orientation.

Features

• Operates on the Peltier effect for cooling or heating by reversing polarity
• Contains no refrigerant — filterless and compressor-free design
• Low-maintenance filterless construction for demanding environments
• Suitable for indoor and outdoor enclosures with Type 12/3R/4/4X protection levels
• Prewired with a simple terminal block for straightforward DC wiring
• Available in shrouded and unshrouded variants as standard
• Operating temperature range: −40 °C to 55 °C (−40 °F to 131 °F)
• Partial recess mount; low-profile for vertical or horizontal installation
• DC operation for 24V and 48V applications

Industry Standards
UR, cUR Recognized; Type 12, 3R, 4, 4X; File No. SA6453; CE; IP65

Available SKUs / Representative Specifications (table)
Columns: Catalog Number | Article Number | Height | Width | Depth | Nominal Voltage | Nominal Capacity Btu/h | Nominal Capacity Watts | Voltage DC | Max Current | Operating Temperature | Material | Finish | Color | Color Code | Thickness
TE090624020 | 21065 | 9.06in | 4.84in | 6.91in | 24V | 178Btu/h | 52W | 18V | 4.4A | −40 to 131°F | Aluminum | Anodized | | | 16ga
TE090624010 | 21074 | 9.29in | 5.02in | 6.94in | 24V | 178Btu/h | 52W | 18V | 4.4A | −40 to 131°F | Mild Steel | Powder Coated | Light Gray | RAL 7035 | 16ga
TE090624011 | 21076 | 9.29in | 5.02in | 6.94in | 24V | 178Btu/h | 52W | 18V | 4.4A | −40 to 131°F | Stainless Steel 304 | Brushed #4 | | | 16ga
TE121024020 | 21066 | 11.81in | 6.02in | 7.4in | 24V | 321Btu/h | 94W | 18V | 8.5A | −40 to 131°F | Aluminum | Anodized | | | 16ga
TE121048020 | 20812 | 11.81in | 6.02in | 7.4in | 48V | 321Btu/h | 94W | 40V | 4.4A | −40 to 131°F | Aluminum | Anodized | | | 16ga
TE121024010 | 21075 | 12in | 6.18in | 7.43in | 24V | 321Btu/h | 94W | 18V | 8.5A | −40 to 131°F | Mild Steel | Powder Coated | Light Gray | RAL 7035 | 16ga
TE121024011 | 21072 | 12in | 6.18in | 7.43in | 24V | 321Btu/h | 94W | 18V | 8.5A | −40 to 131°F | Stainless Steel 304 | Brushed #4 | | | 16ga
TE121048010 | 21071 | 12in | 6.18in | 7.43in | 48V | 321Btu/h | 94W | 40V | 4.4A | −40 to 131°F | Mild Steel | Powder Coated | Light Gray | RAL 7035 | 16ga
TE162024020 | 21068 | 15.75in | 7.09in | 7.25in | 24V | 567Btu/h | 166W | 18V | 14.7A | −40 to 131°F | Aluminum | Anodized | | | 16ga
TE162048020 | 21064 | 15.75in | 7.09in | 7.25in | 48V | 567Btu/h | 166W | 40V | 7.6A | −40 to 131°F | Aluminum | Anodized | | | 16ga
TE162024011 | 21067 | 15.93in | 7.35in | 7.27in | 24V | 567Btu/h | 166W | 18V | 14.7A | −40 to 131°F | Stainless Steel 304 | Brushed #4 | | | 16ga
TE162024010 | 21077 | 15.93in | 7.35in | 7.27in | 24V | 567Btu/h | 166W | 18V | 14.7A | −40 to 131°F | Mild Steel | Powder Coated | Light Gray | RAL 7035 | 16ga
TE162048010 | 21073 | 15.93in | 7.35in | 7.27in | 48V | 567Btu/h | 166W | 40V | 7.6A | −40 to 131°F | Mild Steel | Powder Coated | Light Gray | RAL 7035 | 16ga

Technical characteristics / specifications

• Cooling technology: Peltier (thermoelectric) effect — reversible for cooling or heating
• No refrigerant; filterless and compressor-free design
• Nominal capacities by SKU: 178 Btu/h (52W), 321 Btu/h (94W), 567 Btu/h (166W)
• Nominal voltage families: 24V and 48V
• DC input examples shown (e.g., 18V, 40V) with prewired terminal block
• Max currents vary by SKU (examples: 4.4A, 7.6A, 8.5A, 14.7A)
• Operating temperature: −40 to 55 °C (−40 to 131 °F)
• Materials: Aluminum (anodized), Mild Steel (powder coated), Stainless Steel 304 (brushed #4)
• Ingress protection: IP65; Recognitions: UR, cUR; Types: 12, 3R, 4, 4X
• Mounting: Partial recess mount; low-profile for vertical or horizontal mounting
• Panel cutouts and mechanical dimensions vary by SKU (see SKU list above)
