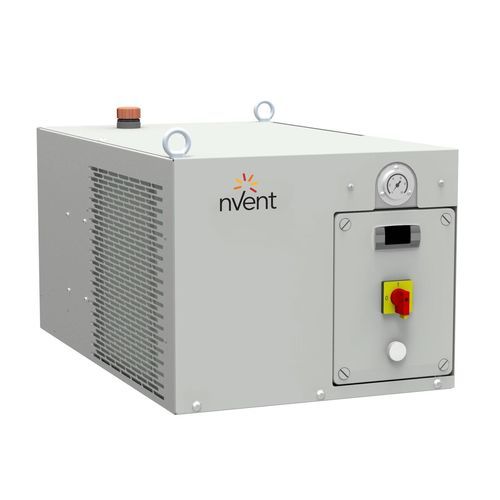

Industrial refrigeration unit TCW series

stationarycompact

Overview
The Industrial Water MiniChiller provides precision and reliability in a compact design. High cooling accuracy supports consistent process quality across production runs. A wide range of accessories and options enables multiple configurations to match application requirements. The unit integrates energy-efficient components and environmentally acceptable refrigerants.

Features

• Hermetic compressor.
• Refrigeration circuit brass pipes.
• Welded brazed stainless plate evaporator.
• High-efficiency condensing coil.
• Axial fan.
• Non-ferrous material fluid circuit.
• Standard liquid circuit with open reservoir and pump.

Specifications
Catalog Number | Nominal Capacity Watts @50Hz | Nominal Capacity Watts @60Hz | Fluid Type | Nominal Voltage | Rated Frequency | Refrigerant | Height | Width | Depth | Weight | Noise Level @ 50 Hz | Number of Phases | Pump Type | Nominal/Max Fluid Flow Rate | Pump Pressure @50Hz | Pump Pressure @60Hz | Tank Capacity | Water Connection Inlet/Outlet
TCW08 | 900W | 1100W | Water | 230V | 50 – 60Hz | R134a, R513A | 14.45in | 28.54in | 17.87in | 114.66lb | 56dB(A) | 1 | Peripheral | 3 – 20 l/min | 5.4bar | 7.6bar | 10l | 1/2"
TCW12 | 1600W | 1900W | Water | 230V | 50 – 60Hz | R134a, R513A | 14.45in | 28.54in | 17.87in | 119.07lb | 56dB(A) | 1 | Peripheral | 5 – 20 l/min | 4.6bar | 6.7bar | 10l | 1/2"
TCW19 | 2200W | 2550W | Water | 230V | 50 – 60Hz | R134a, R513A | 14.45in | 28.54in | 17.87in | 121.28lb | 56dB(A) | 1 | Peripheral | 6.5 – 20 l/min | 4bar | 6bar | 10l | 1/2"
TCW31 | 3000W | 3450W | Water | 230V | 50 – 60Hz | R134a, R513A | 19.49in | 31.5in | 17.72in | 163.17lb | 57dB(A) | 1 | Peripheral | 6.5 – 20 l/min | 2.8bar | 3.7bar | 10l | 1/2"
TCW41 | 3900W | 4450W | Water | 230V | 50 – 60Hz | R134a, R513A | 19.49in | 31.5in | 17.72in | 165.38lb | 57dB(A) | 1 | Peripheral | 11 – 20 l/min | 2.8bar | 3.7bar | 10l | 1/2"

Technical characteristics / specifications

• Series: TCW series (catalog numbers: TCW08, TCW12, TCW19, TCW31, TCW41).
• Fluid Type: Water.
• Refrigerants supported: R134a, R513A.
• Nominal Voltage: 230V.
• Rated Frequency: 50 – 60Hz.
• Number of Phases: 1 (single phase).
• Compressors: Hermetic compressor.
• Evaporator: Welded brazed stainless plate evaporator.
• Condenser: High-efficiency condensing coil.
• Fan type: Axial fan.
• Fluid circuit materials: Non-ferrous materials used in fluid circuit.
• Standard liquid circuit: Open reservoir with pump; tank capacity 10 l (per unit).
• Pump type: Peripheral pump.
• Nominal / Max fluid flow rate: ranges by model (3–20 l/min up to 11–20 l/min depending on model).
• Pump pressure range: model-dependent (examples: 2.8bar to 7.6bar depending on model and frequency).
• Available nominal capacities (50Hz): 900W, 1600W, 2200W, 3000W, 3900W.
• Available nominal capacities (60Hz): 1100W, 1900W, 2550W, 3450W, 4450W.
• Dimensions vary by model (Height: 14.45in or 19.49in; Width: 28.54in or 31.5in; Depth: 17.72in or 17.87in).
• Weights vary by model (approx. 114.66lb to 165.38lb).
• Noise level around 56–57 dB(A) at 50Hz depending on model.
• Water connection inlet/outlet: 1/2".
