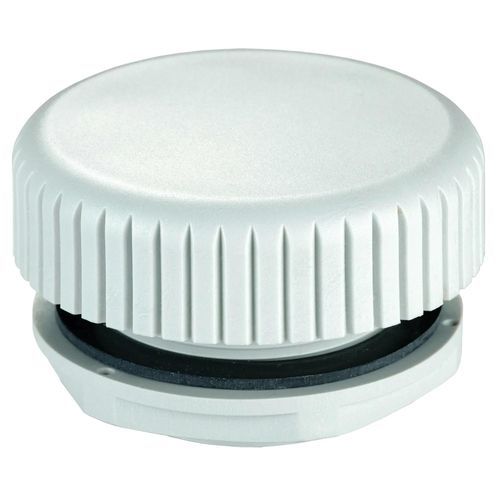

Plastic pressure compensation device APCDABS

Product overview
Pressure differentials in a tightly sealed enclosure result from heat generated by electrical and electronic equipment inside the enclosure and from outside ambient temperature fluctuations. This pressure compensation plug enables slow pressure equalization while maintaining dust and water protection; when correctly installed it preserves IP66 protection. For optimal performance, install two plugs diagonally to each other.

Features

• Air permeability: 42 ft³/h (1,200 L/h) at a pressure difference ≥70 mbar
• Easy installation: drill a 1.60 in (41 mm) diameter hole
• Sealing gasket: Nitrile (Buna‑N) rubber
• Semipermeable membrane inside the plug filters moisture and dust
• Mounting thread: M40 with union nut

Industry standards
UL Type 1, 4, 4X; File No. E234324
CE
IEC/EN 60529, IP66

Product Attributes
Article Number: 16456
Catalog#: APCDABS
Dimensions (Ø×H×D): 60×60×37 mm (2.36×2.36×1.46 in)
Material: Plastic (smooth matte finish)
Color: Light Gray
Diameter: 60 mm
Weight: 0.26 lb
UPC: 783510164560
Standard Packaging Quantity: 1
Packing Quantity: 1

Installation note
For optimal pressure equalization, install two plugs diagonally opposite each other.

Technical specifications

• Air permeability: 42 ft³/h (1,200 L/h) at ≥70 mbar differential pressure
• Hole required for installation: 1.60 in (41 mm) diameter
• Sealing gasket material: Nitrile (Buna‑N) rubber
• Internal semipermeable membrane: filters moisture and dust
• Mounting thread: M40 with union nut
• Protection rating: IP66 (per IEC/EN 60529)
• Industry compliance: UL Type 1, 4, 4X (File No. E234324); CE
